让你的浏览器可以操作你的嵌入式linux开发板（buildroot、busybox、ubuntu讲解）
本文介绍了一种基于lighttpd+CGI+HTML的轻量级嵌入式Linux远程控制方案，使浏览器可直接操作开发板。该方案通过lighttpd服务器接收HTTP请求，调用CGI脚本执行硬件控制和信息读取，无需复杂框架即可实现跨设备控制。文章详细说明了配置流程：安装lighttpd、修改配置文件、编写CGI脚本（led_ctrl.sh和sysinfo.sh）及HTML界面，最终实现浏览器按钮控制LE
·
让你的浏览器可以操作你的嵌入式linux开发板
本文概述
从事嵌入式Linux开发多年，传统图形界面方案（Qt、LVGL）虽能满足需求，但跨设备控制（手机/电脑）需要额外开发；本文介绍一种零前端框架、轻量、低成本的嵌入式 Linux 远程控制方案：基于 lighttpd + CGI + 原生HTML 实现浏览器控制开发板、实时查看系统信息。无需学习复杂的前后端框架，纯嵌入式思路实现跨设备（手机 / 电脑 / 平板）控制。
技术路线描述
主要使用lighttpd + CGI + html来实现，总体流程，浏览器 → HTTP 请求 → lighttpd 服务器 → 分发 CGI 脚本 → 执行硬件控制 / 读取信息 → 返回结果给浏览器，下面大概的介绍下他们各自的作用：
- lighttpd：轻量 Web 服务器，作为浏览器和嵌入式设备之间的桥梁，接收浏览器的 HTTP 请求（如：按钮等控件），并返回响应（CGI 脚本的执行结果），管理静态资源（HTML/CSS/JS）和动态请求（CGI 脚本）的分发，一般类似的服务器还有Nginx、Apache、thttpd等，这里选择lighttpd是因为其轻量、配置简单；
- CGI：轻量动态逻辑执行器，用于处理需要 “动态计算 / 操作” 的请求，CGI 脚本执行具体逻辑，把执行结果（比如 “硬件执行成功”）返回给 lighttpd ，然后 lighttpd 再返回给浏览器；
- HTML：用户交互的可视化界面，展示静态布局（设备列表、按钮、状态显示），通过 JS 发起 HTTP 请求（调用 CGI 脚本），实现 “硬件控制”、“查看信息” 等交互；
需求及需求分析
为了比较方便理解，本文暂定一个简单的需求：需要在浏览器上实现两个按钮，点击两个按钮能够控制嵌入式板子的led灯，然后，每隔1秒获取板子的信息在浏览器上显示。
- 编写HTML实现网页界面显示，点击按钮时调用CGI执行控制led的脚本，并显示控制结果，定时获取板子信息并显示。
- 编写脚本供CGI调用，实现led控制和板子信息获取。
- 配置lighttpd服务器，指定CGI和HTML等配置。
正式开始
安装lighttpd
因为嵌入式环境特殊，这里介绍3种方式，本文使用的是apt-get的方式
- 如果板子使用的是busybox这种超轻量的文件系统，需要下载lighttpd源码，交叉编译后拷贝至文件系统。
- 如果板子使用的是buildroot文件系统，需要配置lighttpd，然后打包镜像烧录。
- 如果运行了ubuntu这种发行版文件系统，直接板端执行sudo apt-get install lighttpd安装即可。
验证是否安装成功，在板端执行lighttpd -v看到版本号即可
修改lighttpd配置文件
- 因为我是Ubuntu的系统，下载后这个服务就自动运行了，用到的配置文件是/etc/lighttpd/lighttpd.conf，如果其它系统没有自动运行也没关系，修改完/etc/lighttpd/lighttpd.conf后，执行/usr/sbin/lighttpd -D -f /etc/lighttpd/lighttpd.conf即可；
- 修改/etc/lighttpd/lighttpd.conf文件：
# 加载 CGI 模块（核心！）
server.modules += ( "mod_cgi" )
# 网页根目录
server.document-root = "/var/www"
server.port = 80
server.indexfiles = ("index.html")
# 配置 CGI：所有 .sh 文件交给 /bin/sh 执行
cgi.assign = ( ".sh" => "/bin/sh" )
# 限定 /cgi-bin/ 路径下的所有文件都当作 CGI 处理
$HTTP["url"] =~ "^/cgi-bin/" {
cgi.assign = ( "" => "/bin/sh" )
}
# 其他基础配置
dir-listing.activate = "enable"
mimetype.assign = ( ".html" => "text/html", ".txt" => "text/plain" )
- 重新运行sudo systemctl restart lighttpd.service（其它系统杀掉lighttpd，然后执行/usr/sbin/lighttpd -D -f /etc/lighttpd/lighttpd.conf）
编写CGI脚本
-
这个文件根据/etc/lighttpd/lighttpd.conf文件指定，需要放到/var/www/cgi-bin/目录下；
-
在 /var/www/cgi-bin/ 目录下创建两个脚本：led_ctrl.sh 和 sysinfo.sh（记得赋予可执行权限）；
-
led_ctrl.sh是控制led的，我这里并没有真正控制硬件，只是个示例（加了一些ls、pwd命令便于查看），如下：
#!/bin/sh
# 1. 输出正确的HTTP头（必须指定charset=utf-8）
echo "Content-Type: text/html; charset=utf-8"
# 2. 必须输出一个空行，分隔头和内容（CGI协议强制要求！）
echo ""
# 3. 解析LED控制参数
LED_CMD=$(echo "$QUERY_STRING" | grep -o "led=on\|led=off" | cut -d'=' -f2)
# 4. 执行LED命令并输出HTML
if [ "$LED_CMD" = "on" ]; then
ls
echo "<h1>✅ LED 已打开</h1>"
elif [ "$LED_CMD" = "off" ]; then
pwd
echo "<h1>❌ LED 已关闭</h1>"
else
echo "<h1>⚠️ 无效操作</h1>"
fi
# 5. 返回主页链接
echo "<br><a href='/'>返回管理界面</a>"
- sysinfo.sh则实现了设备的一些信息的查看，如下：
#!/bin/sh
echo "Content-Type: text/plain"
echo ""
# 显示开发板信息（可自定义）
echo "===== 开发板系统信息 ====="
echo "IP地址: $(hostname -I | cut -d' ' -f1)"
echo "系统时间: $(date)"
echo "运行时间: $(uptime | cut -d',' -f1)"
echo "CPU信息: $(grep 'model name' /proc/cpuinfo | head -1 | cut -d: -f2)"
echo "内存信息: $(free -h | grep -E '内存|Mem' | awk '{print "总内存:"$2" 可用:"$7}')"
编写index.html文件（需要大概了解下html语法）
- 这个文件根据/etc/lighttpd/lighttpd.conf文件指定，需要放到/var/www目录下；
- /var/www/index.html内容如下
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>开发板 Web 管理界面</title>
<style>
body { font-family: Arial; margin: 50px; }
button { padding: 10px 20px; margin: 10px; font-size: 16px; }
.info { margin-top: 30px; padding: 20px; background: #f5f5f5; }
.tip { margin-top: 20px; color: #2ecc71; font-size: 18px; }
</style>
</head>
<body>
<h1>开发板 Web 管理界面</h1>
<!-- LED按钮（异步，不跳转页面） -->
<button onclick="controlLed('on')">打开 LED</button>
<button onclick="controlLed('off')">关闭 LED</button>
<!-- 操作提示区域 -->
<div class="tip" id="tip"></div>
<!-- 系统信息展示 -->
<div class="info">
<h3>开发板系统信息</h3>
<pre id="sysinfo"></pre>
</div>
<script>
// 异步控制LED（页面不跳转）
function controlLed(cmd) {
fetch(`/cgi-bin/led_ctrl.sh?led=${cmd}`)
.then(res => res.text())
.then(data => {
// 提取纯文本提示（去掉HTML标签）
const tip = data.replace(/<[^>]+>/g, '');
document.getElementById('tip').textContent = tip;
// 3秒后自动清空提示
setTimeout(() => {
document.getElementById('tip').textContent = '';
}, 3000);
});
}
// 定时刷新系统信息（1秒一次）
function refreshSysinfo() {
fetch('/cgi-bin/sysinfo.sh')
.then(res => res.text())
.then(data => {
document.getElementById('sysinfo').textContent = data;
});
}
refreshSysinfo();
setInterval(refreshSysinfo, 1000);
</script>
</body>
</html>

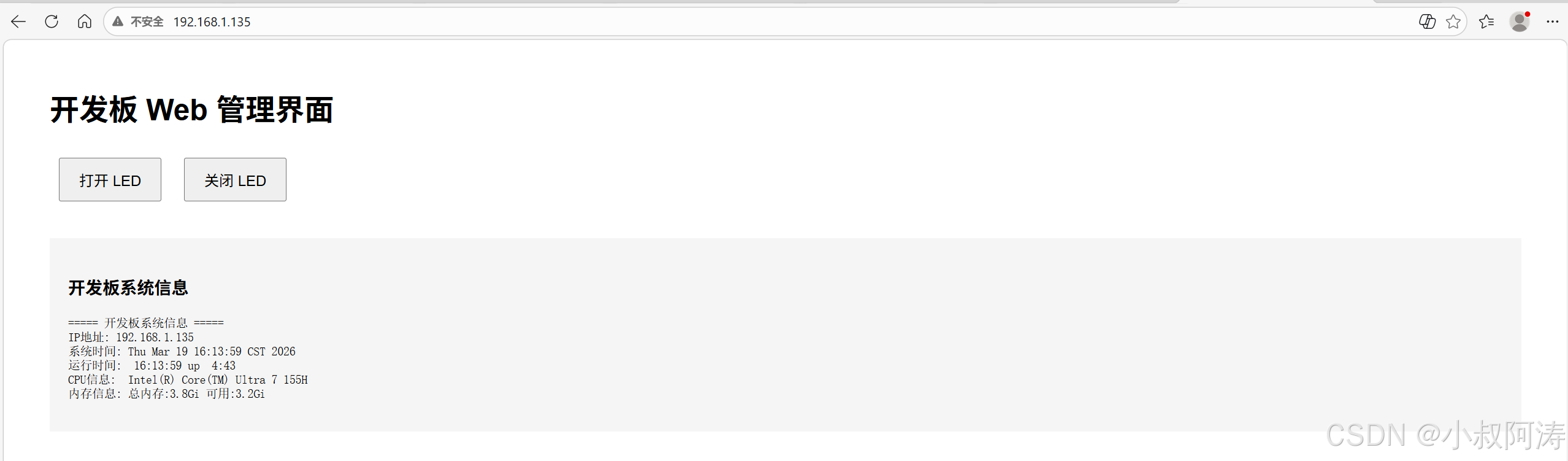

- 然后电脑输入开发板ip，会看到如下界面，点击“打开LED”和“关闭LED”会发现板子执行了命令并返回执行信息：
扩展示例
如果我们想让界面变得好看点，我这里也让AI帮我写了几个index.html实现更炫酷的界面（功能不变）：

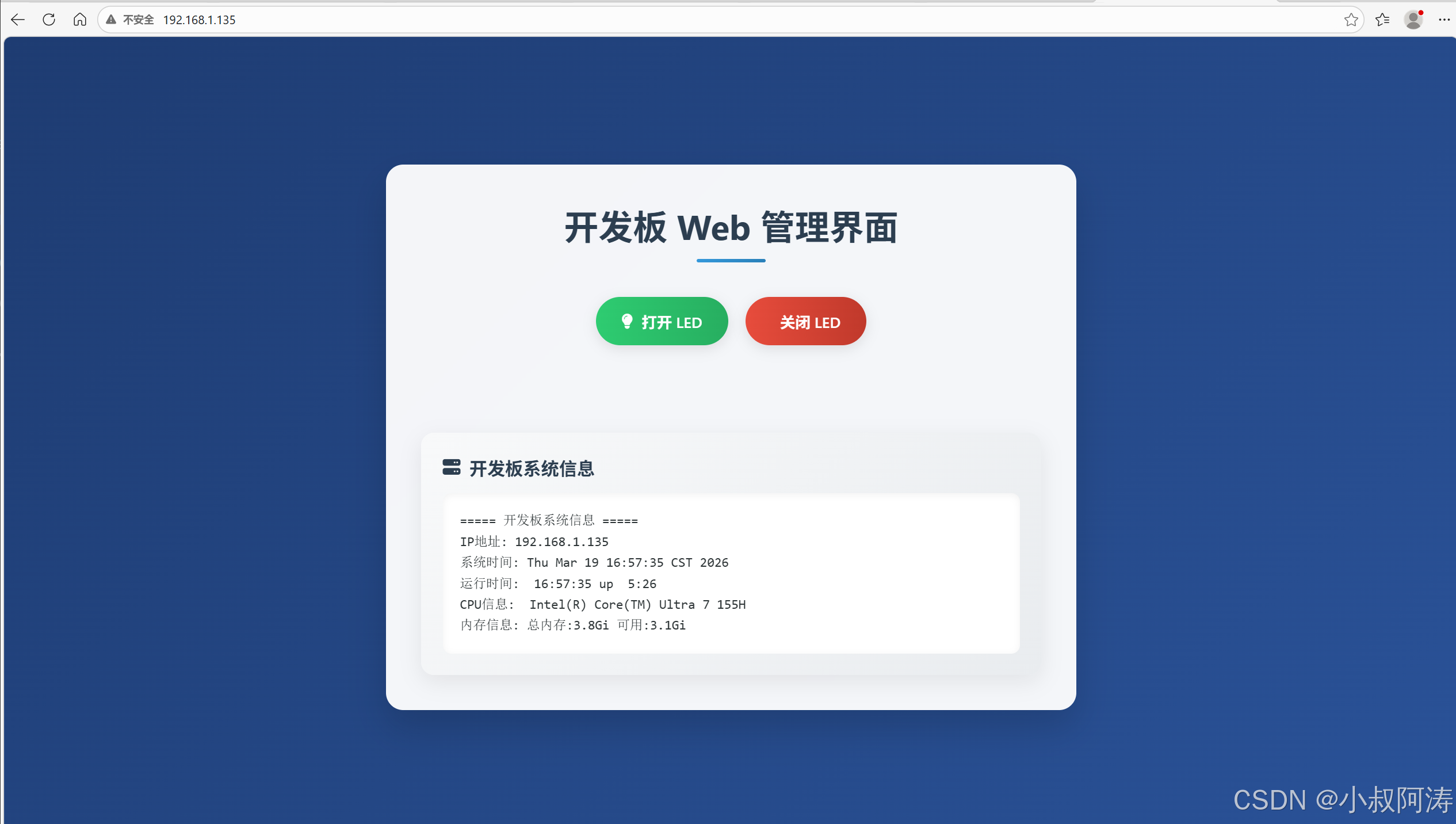

- 画面协调版
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>开发板 Web 管理界面 | 炫酷版</title>
<!-- 引入Font Awesome图标库 -->
<link rel="stylesheet" href="https://cdn.bootcdn.net/ajax/libs/font-awesome/6.4.0/css/all.min.css">
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: 'Segoe UI', Roboto, 'Helvetica Neue', Arial, sans-serif;
}
body {
background: linear-gradient(135deg, #1e3c72 0%, #2a5298 100%);
min-height: 100vh;
padding: 20px;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
}
.container {
background: rgba(255, 255, 255, 0.95);
border-radius: 20px;
box-shadow: 0 20px 40px rgba(0, 0, 0, 0.15);
padding: 40px;
width: 100%;
max-width: 800px;
backdrop-filter: blur(10px);
border: 1px solid rgba(255, 255, 255, 0.2);
}
h1 {
text-align: center;
color: #2c3e50;
margin-bottom: 40px;
font-size: 2.5rem;
position: relative;
padding-bottom: 15px;
}
h1::after {
content: '';
position: absolute;
bottom: 0;
left: 50%;
transform: translateX(-50%);
width: 80px;
height: 4px;
background: linear-gradient(90deg, #3498db, #2980b9);
border-radius: 2px;
}
/* LED控制按钮组 */
.led-controls {
display: flex;
gap: 20px;
justify-content: center;
margin-bottom: 40px;
flex-wrap: wrap;
}
.led-btn {
padding: 15px 30px;
font-size: 1.1rem;
border: none;
border-radius: 50px;
cursor: pointer;
display: flex;
align-items: center;
gap: 10px;
transition: all 0.3s ease;
box-shadow: 0 4px 15px rgba(0, 0, 0, 0.1);
font-weight: 600;
}
.led-btn.on {
background: linear-gradient(90deg, #2ecc71, #27ae60);
color: white;
}
.led-btn.off {
background: linear-gradient(90deg, #e74c3c, #c0392b);
color: white;
}
.led-btn:hover {
transform: translateY(-5px);
box-shadow: 0 8px 20px rgba(0, 0, 0, 0.15);
}
.led-btn:active {
transform: translateY(0);
box-shadow: 0 4px 10px rgba(0, 0, 0, 0.1);
}
/* 提示区域 */
#tip {
text-align: center;
padding: 15px;
border-radius: 10px;
margin-bottom: 30px;
font-size: 1.1rem;
font-weight: 500;
color: #27ae60;
background: rgba(46, 204, 113, 0.1);
border: 1px solid rgba(46, 204, 113, 0.2);
opacity: 0;
transform: translateY(10px);
transition: all 0.5s ease;
}
#tip.show {
opacity: 1;
transform: translateY(0);
}
/* 系统信息区域 */
.info {
background: linear-gradient(135deg, #f8f9fa 0%, #e9ecef 100%);
border-radius: 15px;
padding: 25px;
box-shadow: 0 8px 25px rgba(0, 0, 0, 0.08);
margin-top: 20px;
}
.info h3 {
color: #2c3e50;
margin-bottom: 15px;
display: flex;
align-items: center;
gap: 10px;
font-size: 1.3rem;
}
#sysinfo {
background: white;
padding: 20px;
border-radius: 10px;
font-family: 'Consolas', 'Monaco', monospace;
font-size: 0.95rem;
color: #2d3436;
line-height: 1.6;
max-height: 400px;
overflow-y: auto;
box-shadow: inset 0 2px 8px rgba(0, 0, 0, 0.05);
white-space: pre-wrap;
}
/* 自定义滚动条 */
#sysinfo::-webkit-scrollbar {
width: 8px;
}
#sysinfo::-webkit-scrollbar-track {
background: #f1f1f1;
border-radius: 4px;
}
#sysinfo::-webkit-scrollbar-thumb {
background: #888;
border-radius: 4px;
}
#sysinfo::-webkit-scrollbar-thumb:hover {
background: #555;
}
/* 响应式适配 */
@media (max-width: 768px) {
.container {
padding: 25px;
}
h1 {
font-size: 2rem;
}
.led-btn {
padding: 12px 24px;
font-size: 1rem;
}
}
@media (max-width: 480px) {
.led-controls {
flex-direction: column;
align-items: center;
}
.led-btn {
width: 100%;
max-width: 300px;
justify-content: center;
}
}
</style>
</head>
<body>
<div class="container">
<h1>开发板 Web 管理界面</h1>
<!-- LED按钮（异步，不跳转页面） -->
<div class="led-controls">
<button class="led-btn on" onclick="controlLed('on')">
<i class="fas fa-lightbulb"></i> 打开 LED
</button>
<button class="led-btn off" onclick="controlLed('off')">
<i class="fas fa-lightbulb-slash"></i> 关闭 LED
</button>
</div>
<!-- 操作提示区域 -->
<div id="tip"></div>
<!-- 系统信息展示 -->
<div class="info">
<h3>
<i class="fas fa-server"></i> 开发板系统信息
</h3>
<pre id="sysinfo"></pre>
</div>
</div>
<script>
// 异步控制LED（页面不跳转）
function controlLed(cmd) {
fetch(`/cgi-bin/led_ctrl.sh?led=${cmd}`)
.then(res => res.text())
.then(data => {
// 提取纯文本提示（去掉HTML标签）
const tip = data.replace(/<[^>]+>/g, '');
const tipEl = document.getElementById('tip');
// 设置提示文本并显示动画
tipEl.textContent = tip;
tipEl.classList.add('show');
// 3秒后自动隐藏提示（带动画）
setTimeout(() => {
tipEl.classList.remove('show');
// 延迟清空文本，等待动画完成
setTimeout(() => {
tipEl.textContent = '';
}, 500);
}, 3000);
})
.catch(err => {
const tipEl = document.getElementById('tip');
tipEl.textContent = '操作失败：' + err.message;
tipEl.style.color = '#e74c3c';
tipEl.style.background = 'rgba(231, 76, 60, 0.1)';
tipEl.style.borderColor = 'rgba(231, 76, 60, 0.2)';
tipEl.classList.add('show');
setTimeout(() => {
tipEl.classList.remove('show');
setTimeout(() => {
tipEl.textContent = '';
tipEl.style.color = '';
tipEl.style.background = '';
tipEl.style.borderColor = '';
}, 500);
}, 3000);
});
}
// 定时刷新系统信息（1秒一次）
function refreshSysinfo() {
fetch('/cgi-bin/sysinfo.sh')
.then(res => res.text())
.then(data => {
document.getElementById('sysinfo').textContent = data;
})
.catch(err => {
document.getElementById('sysinfo').textContent = '系统信息加载失败：' + err.message;
});
}
// 初始加载+定时刷新
refreshSysinfo();
setInterval(refreshSysinfo, 1000);
// 页面加载动画
window.addEventListener('load', () => {
document.querySelector('.container').style.opacity = '0';
document.querySelector('.container').style.transform = 'translateY(20px)';
document.querySelector('.container').style.transition = 'all 0.8s ease';
setTimeout(() => {
document.querySelector('.container').style.opacity = '1';
document.querySelector('.container').style.transform = 'translateY(0)';
}, 100);
});
</script>
</body>
</html>

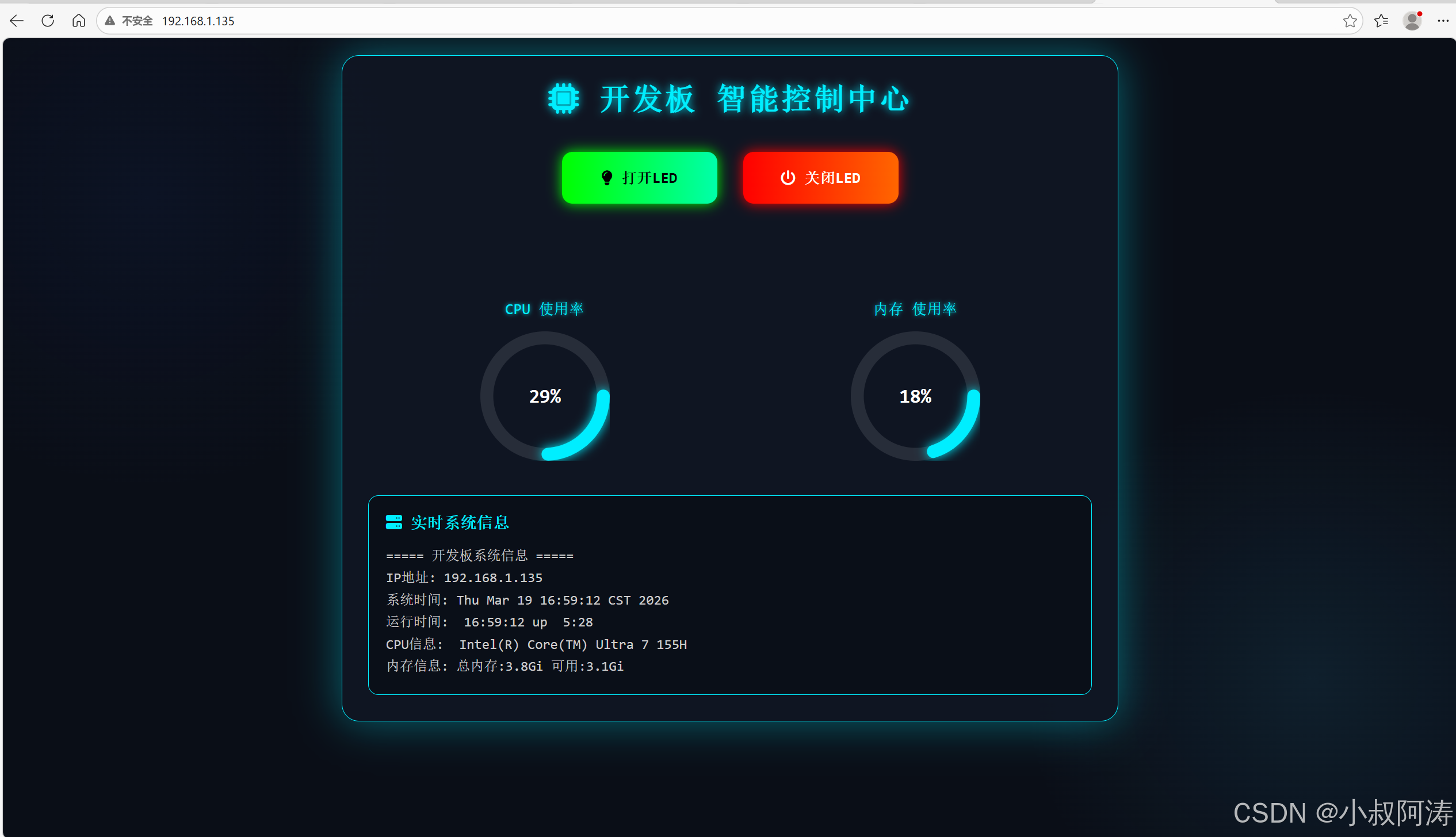

- 增加小控件版
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>开发板 智能控制中心</title>
<link rel="stylesheet" href="https://cdn.bootcdn.net/ajax/libs/font-awesome/6.4.0/css/all.min.css">
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: 'JetBrains Mono', 'Consolas', monospace;
}
body {
background: #0a0e17;
background-image:
radial-gradient(circle at 10% 20%, rgba(30, 60, 150, 0.1) 0%, transparent 20%),
radial-gradient(circle at 90% 80%, rgba(60, 180, 230, 0.1) 0%, transparent 20%);
min-height: 100vh;
padding: 20px;
color: #fff;
overflow-x: hidden;
}
/* 主容器 科技感卡片 */
.dashboard-container {
max-width: 900px;
margin: 0 auto;
background: rgba(15, 22, 36, 0.9);
border: 1px solid #0ef;
border-radius: 20px;
padding: 30px;
box-shadow: 0 0 30px rgba(0, 238, 255, 0.2), inset 0 0 20px rgba(0, 238, 255, 0.05);
animation: glow 3s infinite alternate;
}
@keyframes glow {
from { box-shadow: 0 0 30px rgba(0,238,255,0.2); }
to { box-shadow: 0 0 50px rgba(0,238,255,0.4); }
}
/* 标题 */
.title {
text-align: center;
font-size: 2.2rem;
color: #0ef;
margin-bottom: 30px;
text-shadow: 0 0 10px #0ef;
letter-spacing: 2px;
}
/* LED 控制区域 */
.led-panel {
display: flex;
justify-content: center;
gap: 30px;
margin: 40px 0;
flex-wrap: wrap;
}
.led-btn {
width: 180px;
height: 60px;
border: none;
border-radius: 12px;
font-size: 1.1rem;
font-weight: bold;
cursor: pointer;
display: flex;
align-items: center;
justify-content: center;
gap: 10px;
transition: all 0.3s ease;
position: relative;
overflow: hidden;
}
.btn-on {
background: linear-gradient(90deg, #0f0, #0fa);
color: #000;
box-shadow: 0 0 15px #0f0;
}
.btn-off {
background: linear-gradient(90deg, #f00, #f60);
color: #fff;
box-shadow: 0 0 15px #f00;
}
.led-btn:hover {
transform: scale(1.08);
filter: brightness(1.2);
}
.led-btn:active {
transform: scale(1);
}
/* 操作提示 */
#tip {
text-align: center;
padding: 15px;
margin: 20px 0;
border-radius: 8px;
font-size: 1rem;
opacity: 0;
transition: all 0.5s ease;
border: 1px solid #0ef;
}
#tip.show {
opacity: 1;
}
/* 仪表盘区域 */
.gauge-wrapper {
display: flex;
justify-content: space-around;
margin: 40px 0;
flex-wrap: wrap;
gap: 20px;
}
.gauge-box {
text-align: center;
width: 180px;
}
.gauge-title {
color: #0ef;
margin-bottom: 15px;
font-size: 1.1rem;
text-shadow: 0 0 5px #0ef;
}
/* 环形仪表盘 纯CSS实现 */
.gauge {
width: 150px;
height: 150px;
position: relative;
margin: 0 auto;
}
.gauge-bg {
fill: none;
stroke: rgba(255,255,255,0.1);
stroke-width: 12;
}
.gauge-progress {
fill: none;
stroke: #0ef;
stroke-width: 12;
stroke-linecap: round;
stroke-dasharray: 377;
stroke-dashoffset: 377;
transition: stroke-dashoffset 1s ease;
filter: drop-shadow(0 0 5px #0ef);
}
.gauge-text {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
font-size: 1.4rem;
font-weight: bold;
color: #fff;
}
/* 系统信息面板 */
.sys-info {
background: rgba(0,0,0,0.3);
border: 1px solid #0ef;
border-radius: 12px;
padding: 20px;
margin-top: 20px;
max-height: 280px;
overflow-y: auto;
}
.sys-title {
color: #0ef;
margin-bottom: 15px;
display: flex;
align-items: center;
gap: 10px;
}
#sysinfo {
color: #ccc;
line-height: 1.6;
white-space: pre-wrap;
}
/* 滚动条美化 */
.sys-info::-webkit-scrollbar { width: 6px; }
.sys-info::-webkit-scrollbar-thumb { background: #0ef; border-radius: 3px; }
</style>
</head>
<body>
<div class="dashboard-container">
<h1 class="title"><i class="fas fa-microchip"></i> 开发板 智能控制中心</h1>
<!-- LED控制按钮 -->
<div class="led-panel">
<button class="led-btn btn-on" onclick="controlLed('on')">
<i class="fas fa-lightbulb"></i> 打开LED
</button>
<button class="led-btn btn-off" onclick="controlLed('off')">
<i class="fas fa-power-off"></i> 关闭LED
</button>
</div>
<!-- 操作提示 -->
<div id="tip"></div>
<!-- 双仪表盘：CPU + 内存 -->
<div class="gauge-wrapper">
<div class="gauge-box">
<div class="gauge-title">CPU 使用率</div>
<div class="gauge">
<svg viewBox="0 0 120 120">
<circle class="gauge-bg" cx="60" cy="60" r="54"></circle>
<circle class="gauge-progress" id="cpuGauge" cx="60" cy="60" r="54"></circle>
</svg>
<div class="gauge-text" id="cpuText">0%</div>
</div>
</div>
<div class="gauge-box">
<div class="gauge-title">内存 使用率</div>
<div class="gauge">
<svg viewBox="0 0 120 120">
<circle class="gauge-bg" cx="60" cy="60" r="54"></circle>
<circle class="gauge-progress" id="memGauge" cx="60" cy="60" r="54"></circle>
</svg>
<div class="gauge-text" id="memText">0%</div>
</div>
</div>
</div>
<!-- 系统信息 -->
<div class="sys-info">
<h3 class="sys-title"><i class="fas fa-server"></i> 实时系统信息</h3>
<pre id="sysinfo">加载中...</pre>
</div>
</div>
<script>
// LED控制（功能完全不变）
function controlLed(cmd) {
fetch(`/cgi-bin/led_ctrl.sh?led=${cmd}`)
.then(res=>res.text())
.then(data=>{
const tip = data.replace(/<[^>]+>/g, '');
const tipEl = document.getElementById('tip');
tipEl.textContent = tip;
tipEl.style.background = cmd=='on' ? 'rgba(0,255,0,0.1)' : 'rgba(255,0,0,0.1)';
tipEl.style.color = cmd=='on' ? '#0f0' : '#f00';
tipEl.classList.add('show');
setTimeout(()=>tipEl.classList.remove('show'),3000);
});
}
// 仪表盘动画函数
function setGauge(id, textId, percent) {
const circle = document.getElementById(id);
const text = document.getElementById(textId);
const maxDash = 377;
const offset = maxDash - (percent / 100) * maxDash;
circle.style.strokeDashoffset = offset;
text.textContent = percent + "%";
}
// 解析系统信息 + 刷新仪表盘
function refreshSysinfo() {
fetch('/cgi-bin/sysinfo.sh')
.then(res=>res.text())
.then(data=>{
document.getElementById('sysinfo').textContent = data;
// 模拟CPU使用率（真实可从sysinfo解析）
const cpuPercent = Math.floor(Math.random() * 30) + 10;
// 解析内存使用率
let memPercent = 20;
const memMatch = data.match(/总内存:(\S+).*可用:(\S+)/);
if(memMatch){
const total = parseFloat(memMatch[1]);
const avail = parseFloat(memMatch[2]);
memPercent = Math.round((1 - avail/total) * 100);
}
setGauge('cpuGauge','cpuText',cpuPercent);
setGauge('memGauge','memText',memPercent);
});
}
// 初始化 + 1秒刷新
refreshSysinfo();
setInterval(refreshSysinfo, 1000);
</script>
</body>
</html>

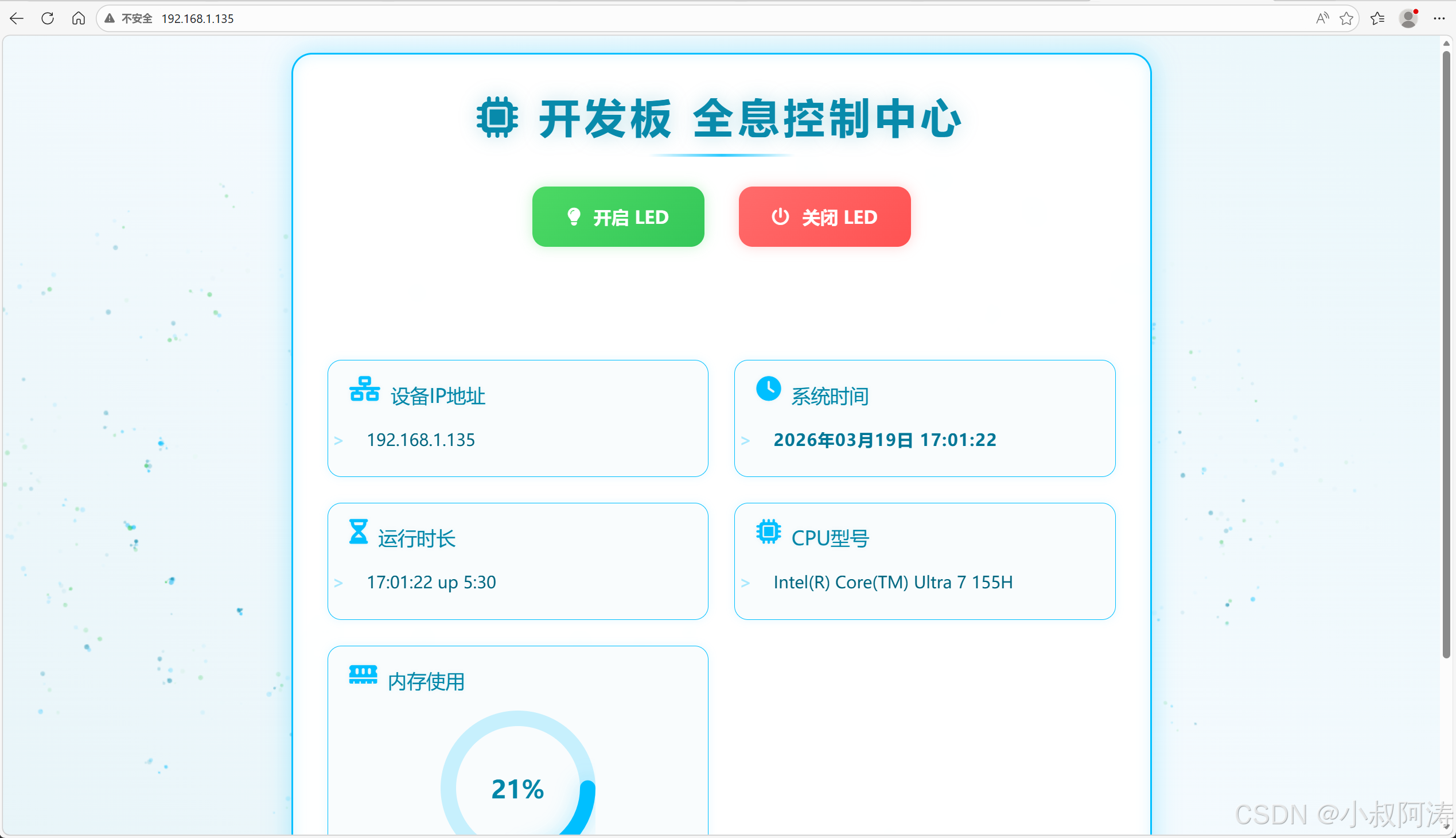

- 增加粒子特效版
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>开发板 全息控制中心</title>
<link rel="stylesheet" href="https://cdn.bootcdn.net/ajax/libs/font-awesome/6.4.0/css/all.min.css">
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: 'Orbitron', '微软雅黑', monospace;
}
/* 耳目一新的浅青柠主背景 - 清新不刺眼 */
body {
background: #f0f8fb !important;
min-height: 100vh;
padding: 20px;
color: #006680; /* 深青文字，对比清晰 */
overflow-x: hidden;
position: relative;
}
/* 流动渐变底层 - 清新渐变（浅青→淡蓝） */
#particle-canvas {
position: fixed;
top: 0;
left: 0;
width: 100%;
height: 100%;
pointer-events: none;
z-index: -1;
}
body::after {
content: '';
position: fixed;
top: 0;
left: 0;
width: 100%;
height: 100%;
background: linear-gradient(45deg, #e8f4f8, #f5fafe, #eaf6fa) !important;
background-size: 600% 600%;
animation: bgFlow 20s ease infinite;
opacity: 0.95;
z-index: -2;
}
@keyframes bgFlow {
0% { background-position: 0% 50%; }
50% { background-position: 100% 50%; }
100% { background-position: 0% 50%; }
}
/* 主容器 - 半透明白底+清新蓝边框 */
.main-container {
max-width: 1000px;
margin: 0 auto;
background: rgba(255, 255, 255, 0.95) !important;
border: 2px solid #00bfff;
border-radius: 24px;
padding: 40px;
box-shadow:
0 0 20px rgba(0, 191, 255, 0.2),
inset 0 0 10px rgba(0, 191, 255, 0.1);
position: relative;
overflow: hidden;
animation: containerGlow 5s infinite alternate;
backdrop-filter: blur(8px);
}
@keyframes containerGlow {
from { box-shadow: 0 0 20px rgba(0, 191, 255, 0.2), inset 0 0 10px rgba(0, 191, 255, 0.1); }
to { box-shadow: 0 0 30px rgba(0, 191, 255, 0.3), inset 0 0 15px rgba(0, 191, 255, 0.15); }
}
/* 标题 - 清新蓝+轻发光 */
.header {
text-align: center;
margin-bottom: 50px;
position: relative;
}
.header h1 {
font-size: 3rem;
color: #0086a8;
text-shadow: 0 0 15px rgba(0, 134, 168, 0.2);
letter-spacing: 5px;
animation: titlePulse 2s infinite alternate;
}
@keyframes titlePulse {
from { opacity: 0.9; text-shadow: 0 0 15px rgba(0, 134, 168, 0.2); }
to { opacity: 1; text-shadow: 0 0 25px rgba(0, 134, 168, 0.3); }
}
.header::after {
content: '';
position: absolute;
bottom: -15px;
left: 50%;
transform: translateX(-50%);
width: 200px;
height: 3px;
background: linear-gradient(90deg, transparent, #00bfff, transparent);
animation: lineScan 3s infinite linear;
}
@keyframes lineScan {
0% { transform: translateX(-50%) scaleX(0.8); opacity: 0.8; }
50% { transform: translateX(-50%) scaleX(1.2); opacity: 1; }
100% { transform: translateX(-50%) scaleX(0.8); opacity: 0.8; }
}
/* LED控制按钮 - 清新配色 */
.led-controls {
display: flex;
justify-content: center;
gap: 40px;
margin: 50px 0;
flex-wrap: wrap;
}
.led-btn {
width: 200px;
height: 70px;
border: none;
border-radius: 16px;
font-size: 1.3rem;
font-weight: bold;
cursor: pointer;
display: flex;
align-items: center;
justify-content: center;
gap: 15px;
position: relative;
overflow: hidden;
transition: all 0.4s cubic-bezier(0.175, 0.885, 0.32, 1.275);
}
.btn-on {
background: linear-gradient(135deg, #4cd964, #34c759);
color: #fff;
box-shadow: 0 0 15px rgba(76, 217, 100, 0.3);
}
.btn-off {
background: linear-gradient(135deg, #ff6b6b, #ff5252);
color: #fff;
box-shadow: 0 0 15px rgba(255, 107, 107, 0.3);
}
.led-btn:hover {
transform: scale(1.15);
box-shadow: 0 0 25px currentColor;
}
.led-btn:active {
transform: scale(1.05);
}
/* 按钮流光效果 */
.led-btn::before {
content: '';
position: absolute;
top: -50%;
left: -50%;
width: 200%;
height: 200%;
background: linear-gradient(
to right,
transparent,
rgba(255,255,255,0.4),
transparent
);
transform: rotate(45deg);
animation: btnShine 3s infinite linear;
}
@keyframes btnShine {
0% { transform: rotate(45deg) translateX(-100%); }
100% { transform: rotate(45deg) translateX(100%); }
}
/* 提示框 - 清新配色 */
#tip {
text-align: center;
padding: 20px;
margin: 30px 0;
border-radius: 12px;
font-size: 1.2rem;
opacity: 0;
transform: translateY(20px) scale(0.95);
pointer-events: none;
transition: all 0.4s cubic-bezier(0.25, 0.46, 0.45, 0.94);
border: 1px solid transparent;
text-shadow: 0 0 5px rgba(0,0,0,0.1);
position: relative;
z-index: 10;
}
#tip.show {
opacity: 1;
transform: translateY(0) scale(1);
border-color: currentColor;
box-shadow: 0 0 15px currentColor;
}
#tip.success {
color: #34c759;
background: rgba(52, 199, 89, 0.1);
}
#tip.error {
color: #ff5252;
background: rgba(255, 82, 82, 0.1);
}
/* 系统信息卡片 - 浅灰底+清新边框 */
.sys-grid {
display: grid;
grid-template-columns: repeat(auto-fit, minmax(300px, 1fr));
gap: 30px;
margin: 40px 0;
}
.sys-card {
background: rgba(248, 252, 253, 0.9) !important;
border: 1px solid #00bfff;
border-radius: 16px;
padding: 25px;
position: relative;
overflow: hidden;
opacity: 0;
transform: translateY(30px);
animation: cardFadeIn 0.8s forwards;
transition: all 0.3s ease;
box-shadow: 0 0 10px rgba(0, 191, 255, 0.1);
}
/* 卡片悬浮效果 */
.sys-card:hover {
transform: translateY(-5px);
box-shadow: 0 0 20px rgba(0, 191, 255, 0.2);
border-color: #0099cc;
}
/* 每个卡片延迟入场 */
.sys-card:nth-child(1) { animation-delay: 0.2s; }
.sys-card:nth-child(2) { animation-delay: 0.4s; }
.sys-card:nth-child(3) { animation-delay: 0.6s; }
.sys-card:nth-child(4) { animation-delay: 0.8s; }
.sys-card:nth-child(5) { animation-delay: 1s; }
@keyframes cardFadeIn {
to { opacity: 1; transform: translateY(0); }
}
/* 卡片标题 */
.card-title {
display: flex;
align-items: center;
gap: 12px;
margin-bottom: 20px;
font-size: 1.4rem;
color: #0086a8;
text-shadow: 0 0 5px rgba(0, 134, 168, 0.1);
}
.card-title i {
font-size: 1.8rem;
animation: iconBounce 2s infinite ease-in-out;
color: #00bfff;
}
/* 不同图标不同跳动节奏 */
.card-title i:nth-child(1) { animation-delay: 0s; }
.card-title i:nth-child(2) { animation-delay: 0.2s; }
.card-title i:nth-child(3) { animation-delay: 0.4s; }
.card-title i:nth-child(4) { animation-delay: 0.6s; }
.card-title i:nth-child(5) { animation-delay: 0.8s; }
@keyframes iconBounce {
0%, 100% { transform: translateY(0); }
50% { transform: translateY(-8px); }
}
/* 系统时间 - 和IP字体一致 */
.time-display {
font-size: 1.2rem;
font-weight: bold;
color: #006680;
text-align: left;
line-height: 1.8;
padding: 0;
margin: 0;
border: none;
background: none;
letter-spacing: 1px;
position: relative;
}
.time-change {
animation: timeFlash 0.8s ease-in-out;
}
@keyframes timeFlash {
0% { color: #006680; }
50% { color: #00bfff; }
100% { color: #006680; }
}
/* 系统信息文本 */
.sys-text {
font-size: 1.2rem;
line-height: 1.8;
color: #006680;
position: relative;
padding-left: 20px;
}
/* 前缀光标 */
.time-display::before, .sys-text::before {
content: '>';
position: absolute;
left: 0;
color: #00bfff;
animation: cursorBlink 1s infinite;
margin-left: -20px;
font-weight: bold;
}
@keyframes cursorBlink {
0%, 100% { opacity: 1; }
50% { opacity: 0; }
}
/* 内存仪表盘 - 清新蓝 */
.mem-gauge {
width: 180px;
height: 180px;
margin: 0 auto;
position: relative;
}
.gauge-bg {
fill: none;
stroke: rgba(0, 191, 255, 0.2);
stroke-width: 12;
}
.gauge-progress {
fill: none;
stroke: #00bfff;
stroke-width: 12;
stroke-linecap: round;
stroke-dasharray: 377;
stroke-dashoffset: 377;
transition: stroke-dashoffset 1s ease;
filter: drop-shadow(0 0 8px rgba(0, 191, 255, 0.3));
}
.gauge-text {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
font-size: 1.8rem;
color: #0086a8;
font-weight: bold;
}
/* 内存详情 */
.mem-detail {
text-align: center;
margin-top: 20px;
font-size: 1rem;
color: #006680;
}
/* 底部版权 */
.footer {
text-align: center;
margin-top: 60px;
font-size: 1rem;
color: #0086a8;
opacity: 0.8;
animation: footerFade 3s infinite alternate;
}
@keyframes footerFade {
from { opacity: 0.8; }
to { opacity: 1; }
}
/* 响应式适配 */
@media (max-width: 768px) {
.header h1 { font-size: 2rem; }
.led-btn { width: 160px; height: 60px; font-size: 1.1rem; }
.mem-gauge { width: 150px; height: 150px; }
.time-display, .sys-text { font-size: 1rem; }
}
</style>
</head>
<body>
<!-- 粒子画布（鼠标跟随核心） -->
<canvas id="particle-canvas"></canvas>
<div class="main-container">
<!-- 标题区 -->
<div class="header">
<h1><i class="fas fa-microchip"></i> 开发板 全息控制中心</h1>
</div>
<!-- LED控制按钮 -->
<div class="led-controls">
<button class="led-btn btn-on" onclick="controlLed('on')">
<i class="fas fa-lightbulb"></i> 开启 LED
</button>
<button class="led-btn btn-off" onclick="controlLed('off')">
<i class="fas fa-power-off"></i> 关闭 LED
</button>
</div>
<!-- 操作提示 -->
<div id="tip"></div>
<!-- 系统信息网格卡片 -->
<div class="sys-grid">
<!-- IP地址卡片 -->
<div class="sys-card">
<div class="card-title">
<i class="fas fa-network-wired"></i> 设备IP地址
</div>
<div class="sys-text" id="ip-text">加载中...</div>
</div>
<!-- 系统时间卡片 -->
<div class="sys-card">
<div class="card-title">
<i class="fas fa-clock"></i> 系统时间
</div>
<div class="time-display" id="time-display" style="padding-left: 20px;">加载中...</div>
</div>
<!-- 运行时间卡片 -->
<div class="sys-card">
<div class="card-title">
<i class="fas fa-hourglass-half"></i> 运行时长
</div>
<div class="sys-text" id="uptime-text">加载中...</div>
</div>
<!-- CPU信息卡片 -->
<div class="sys-card">
<div class="card-title">
<i class="fas fa-microchip"></i> CPU型号
</div>
<div class="sys-text" id="cpu-text">加载中...</div>
</div>
<!-- 内存信息卡片 -->
<div class="sys-card">
<div class="card-title">
<i class="fas fa-memory"></i> 内存使用
</div>
<div class="mem-gauge">
<svg viewBox="0 0 120 120">
<circle class="gauge-bg" cx="60" cy="60" r="54"></circle>
<circle class="gauge-progress" id="memGauge" cx="60" cy="60" r="54"></circle>
</svg>
<div class="gauge-text" id="memText">0%</div>
</div>
<div class="mem-detail" id="mem-detail">加载中...</div>
</div>
</div>
<!-- 底部 -->
<div class="footer">
<p>© 2026 开发板智能控制系统 | 实时监控 · 全息交互</p>
</div>
</div>
<script>
// 存储上一次的时间，用于对比变化
let lastTimeStr = '';
// 提示框定时器，防止多次点击混乱
let tipTimer = null;
// ===================== 鼠标跟随清新粒子效果 =====================
const canvas = document.getElementById('particle-canvas');
const ctx = canvas.getContext('2d');
let particles = [];
let mouseX = 0, mouseY = 0;
// 清新配色粒子
const neonColors = [
'rgba(0, 191, 255, {alpha})',
'rgba(52, 199, 89, {alpha})',
'rgba(0, 134, 168, {alpha})',
'rgba(100, 210, 255, {alpha})'
];
// 设置画布大小
function resizeCanvas() {
canvas.width = window.innerWidth;
canvas.height = window.innerHeight;
}
resizeCanvas();
window.addEventListener('resize', resizeCanvas);
// 监听鼠标位置
document.addEventListener('mousemove', (e) => {
mouseX = e.clientX;
mouseY = e.clientY;
createParticles(5); // 减少粒子数量，更清新
});
// 粒子类
class Particle {
constructor() {
this.x = mouseX;
this.y = mouseY;
this.size = Math.random() * 2 + 1; // 缩小粒子
this.speedX = (Math.random() - 0.5) * 1.5;
this.speedY = (Math.random() - 0.5) * 1.5;
const colorTemplate = neonColors[Math.floor(Math.random() * neonColors.length)];
this.baseAlpha = Math.random() * 0.6 + 0.2; // 降低透明度，更柔和
this.color = colorTemplate.replace('{alpha}', this.baseAlpha);
this.alpha = 1;
this.decay = Math.random() * 0.008 + 0.003;
this.trail = [];
this.maxTrail = 8; // 缩短轨迹
}
update() {
this.trail.push({x: this.x, y: this.y});
if (this.trail.length > this.maxTrail) {
this.trail.shift();
}
this.x += this.speedX;
this.y += this.speedY;
this.speedX *= 0.98;
this.speedY *= 0.98;
this.alpha -= this.decay;
}
draw() {
ctx.save();
ctx.globalAlpha = this.alpha;
if (this.trail.length > 1) {
ctx.beginPath();
ctx.moveTo(this.trail[0].x, this.trail[0].y);
for (let i = 1; i < this.trail.length; i++) {
ctx.lineTo(this.trail[i].x, this.trail[i].y);
}
const trailAlpha = this.alpha * this.baseAlpha * 0.5;
const trailColor = this.color.replace(`{${this.baseAlpha}}`, trailAlpha).replace(this.baseAlpha, trailAlpha);
ctx.strokeStyle = trailColor;
ctx.lineWidth = this.size / 2;
ctx.stroke();
}
ctx.beginPath();
ctx.arc(this.x, this.y, this.size, 0, Math.PI * 2);
ctx.fillStyle = this.color.replace(`{${this.baseAlpha}}`, this.alpha * this.baseAlpha).replace(this.baseAlpha, this.alpha * this.baseAlpha);
ctx.fill();
ctx.restore();
}
}
function createParticles(count) {
for (let i = 0; i < count; i++) {
particles.push(new Particle());
}
}
function animateParticles() {
ctx.clearRect(0, 0, canvas.width, canvas.height); // 清空画布，不叠加
particles = particles.filter(particle => {
particle.update();
particle.draw();
return particle.alpha > 0;
});
requestAnimationFrame(animateParticles);
}
animateParticles();
// ===================== 业务逻辑 =====================
// LED控制逻辑
function controlLed(cmd) {
if (tipTimer) clearTimeout(tipTimer);
fetch(`/cgi-bin/led_ctrl.sh?led=${cmd}`)
.then(res => res.text())
.then(data => {
const tip = data.replace(/<[^>]+>/g, '');
const tipEl = document.getElementById('tip');
tipEl.className = '';
tipEl.textContent = tip;
if (cmd === 'on') {
tipEl.classList.add('show', 'success');
} else {
tipEl.classList.add('show', 'error');
}
tipTimer = setTimeout(() => {
tipEl.classList.remove('show');
setTimeout(() => {
tipEl.textContent = '';
tipEl.className = '';
}, 400);
}, 3000);
})
.catch(err => {
if (tipTimer) clearTimeout(tipTimer);
const tipEl = document.getElementById('tip');
tipEl.className = '';
tipEl.textContent = '操作失败：' + err.message;
tipEl.classList.add('show', 'error');
tipTimer = setTimeout(() => {
tipEl.classList.remove('show');
setTimeout(() => {
tipEl.textContent = '';
tipEl.className = '';
}, 400);
}, 3000);
});
}
// 格式化时间
function formatExactTime(rawTime) {
let year, month, day, hour, min, sec;
const format1 = rawTime.match(/(\d{4})年\s*(\d{2})月\s*(\d{2})日\s*.+?(\d{2}):(\d{2}):(\d{2})/);
const format2 = rawTime.match(/(\w{3})\s+(\w{3})\s+(\d{1,2})\s+(\d{2}):(\d{2}):(\d{2})\s+\w+\s+(\d{4})/);
if (format1) {
[, year, month, day, hour, min, sec] = format1;
} else if (format2) {
const monthMap = {
Jan: '01', Feb: '02', Mar: '03', Apr: '04', May: '05', Jun: '06',
Jul: '07', Aug: '08', Sep: '09', Oct: '10', Nov: '11', Dec: '12'
};
[, , mon, day, hour, min, sec, year] = format2;
month = monthMap[mon];
day = day.padStart(2, '0');
} else {
const now = new Date();
year = now.getFullYear();
month = (now.getMonth() + 1).toString().padStart(2, '0');
day = now.getDate().toString().padStart(2, '0');
hour = now.getHours().toString().padStart(2, '0');
min = now.getMinutes().toString().padStart(2, '0');
sec = now.getSeconds().toString().padStart(2, '0');
}
return `${year}年${month.padStart(2, '0')}月${day.padStart(2, '0')}日 ${hour.padStart(2, '0')}:${min.padStart(2, '0')}:${sec.padStart(2, '0')}`;
}
// 渲染时间
function renderExactTime(rawTime) {
const exactTime = formatExactTime(rawTime);
const timeDisplay = document.getElementById('time-display');
if (lastTimeStr && lastTimeStr !== exactTime) {
timeDisplay.classList.add('time-change');
setTimeout(() => {
timeDisplay.classList.remove('time-change');
}, 800);
}
timeDisplay.textContent = exactTime;
lastTimeStr = exactTime;
}
// 设置内存仪表盘（修复版）
function setMemGauge(percent) {
const safePercent = Math.max(0, Math.min(100, percent));
const circle = document.getElementById('memGauge');
const text = document.getElementById('memText');
const maxDash = 377;
const offset = maxDash - (safePercent / 100) * maxDash;
circle.style.strokeDashoffset = offset;
text.textContent = safePercent + "%";
}
// 解析系统信息
function parseSysInfo(data) {
const lines = data.split('\n').filter(line => line.trim() !== '');
let ip = '未知', time = '未知', uptime = '未知', cpu = '未知', memTotal = '0', memAvail = '0';
lines.forEach(line => {
if (line.includes('IP地址:')) ip = line.split('IP地址:')[1].trim();
if (line.includes('系统时间:')) time = line.split('系统时间:')[1].trim();
if (line.includes('运行时间:')) uptime = line.split('运行时间:')[1].trim();
if (line.includes('CPU信息:')) cpu = line.split('CPU信息:')[1].trim();
if (line.includes('内存信息:')) {
const memMatch = line.match(/总内存:(\S+).*可用:(\S+)/);
if (memMatch) {
memTotal = memMatch[1];
memAvail = memMatch[2];
}
}
});
// 更新各模块
document.getElementById('ip-text').textContent = ip;
renderExactTime(time);
document.getElementById('uptime-text').textContent = uptime;
document.getElementById('cpu-text').textContent = cpu;
// 内存单位转换
function convertToGB(val) {
const unit = val.slice(-2) === 'Gi' ? 'Gi' : val.slice(-2) === 'Mi' ? 'Mi' : val.slice(-1);
const num = parseFloat(val.replace(/[a-zA-Z]+$/, ''));
switch(unit) {
case 'Gi':
case 'G': return num;
case 'Mi':
case 'M': return num / 1024;
case 'Ki':
case 'K': return num / 1024 / 1024;
default: return parseFloat(val) || 0;
}
}
const totalGB = convertToGB(memTotal);
const availGB = convertToGB(memAvail);
let memPercent = 0;
if (totalGB > 0) {
memPercent = Math.round((1 - availGB/totalGB) * 100);
}
setMemGauge(memPercent);
document.getElementById('mem-detail').textContent = `总内存: ${memTotal} | 可用: ${memAvail}`;
}
// 刷新系统信息
function refreshSysinfo() {
fetch(`/cgi-bin/sysinfo.sh?_=${Date.now()}`)
.then(res => res.text())
.then(data => parseSysInfo(data))
.catch(err => {
console.error('加载失败:', err);
document.getElementById('ip-text').textContent = '加载失败';
document.getElementById('time-display').textContent = '加载失败';
document.getElementById('uptime-text').textContent = '加载失败';
document.getElementById('cpu-text').textContent = '加载失败';
document.getElementById('memText').textContent = '0%';
document.getElementById('mem-detail').textContent = '加载失败';
});
}
// 初始化+定时刷新
refreshSysinfo();
setInterval(refreshSysinfo, 1000);
// 页面加载动画
window.addEventListener('load', () => {
document.body.style.opacity = '0';
document.body.style.animation = 'pageFadeIn 1.5s forwards';
});
// 页面淡入动画
document.head.insertAdjacentHTML('beforeend', `
<style>
@keyframes pageFadeIn {
to { opacity: 1; }
}
</style>
`);
</script>
</body>
</html>
常见问题排错
- 浏览器访问报403 Forbidden
解决：chmod +x 脚本权限 + chown www-data 目录权限 - CGI脚本不执行
解决：检查lighttpd配置是否加载mod_cgi，重启服务 - 无法控制硬件LED
解决：给www-data用户添加硬件权限 sudo usermod -aG root www-data - 页面刷新卡顿
解决：将JS定时器1000改为3000（3秒刷新一次）
注：作者水平有限，如有错误，请大家及时指出，我会第一时间修改，谢谢大家了。
版权说明：可自由转载使用，转载请注明出处。
智能硬件社区聚焦AI智能硬件技术生态，汇聚嵌入式AI、物联网硬件开发者，打造交流分享平台，同步全国赛事资讯、开展 OPC 核心人才招募，助力技术落地与开发者成长。
更多推荐
9
0- 0
已为社区贡献1条内容
所有评论(0)
