基于ESP32的嵌入式多功能调试器设计
本文设计了一款基于ESP32S3的嵌入式多功能调试器，集成了DAPlink、逻辑分析仪、串口助手等十余种调试功能。硬件采用分层架构设计，以ESP32S3为核心控制器，配备屏幕和触摸模块；软件基于前后台架构开发，使用VS Code和ARM-GCC工具链。系统测试表明，该调试器功能完备、性能稳定，能满足嵌入式开发的多样化调试需求。
·

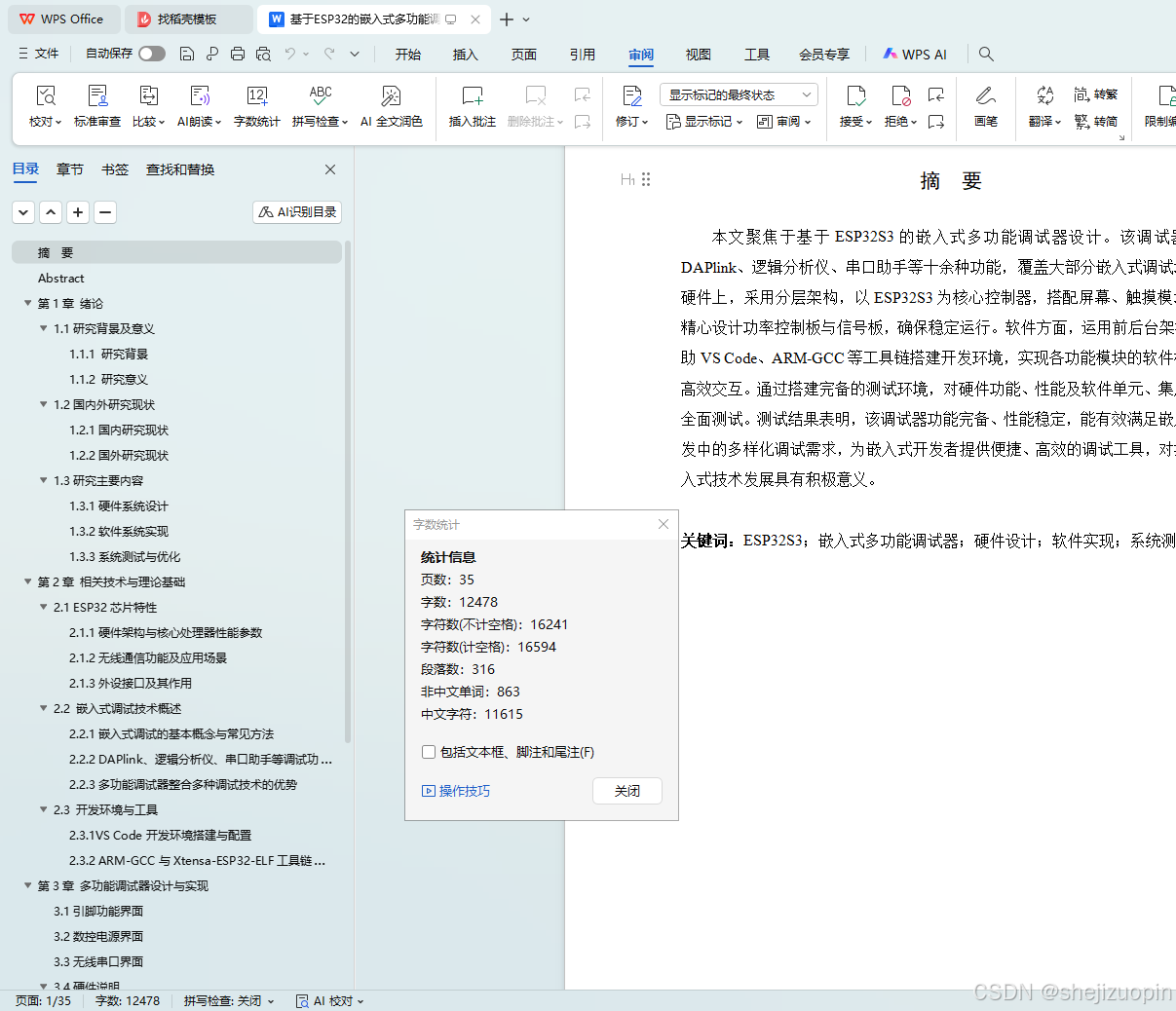

摘 要
本文聚焦于基于ESP32S3的嵌入式多功能调试器设计。该调试器整合DAPlink、逻辑分析仪、串口助手等十余种功能，覆盖大部分嵌入式调试场景。硬件上，采用分层架构，以ESP32S3为核心控制器，搭配屏幕、触摸模块等，精心设计功率控制板与信号板，确保稳定运行。软件方面，运用前后台架构，借助VS Code、ARM-GCC等工具链搭建开发环境，实现各功能模块的软件模拟与高效交互。通过搭建完备的测试环境，对硬件功能、性能及软件单元、集成进行全面测试。测试结果表明，该调试器功能完备、性能稳定，能有效满足嵌入式开发中的多样化调试需求，为嵌入式开发者提供便捷、高效的调试工具，对推动嵌入式技术发展具有积极意义。
关键词：ESP32S3；嵌入式多功能调试器；硬件设计；软件实现；系统测试
Abstract
This paper focuses on the design of an embedded multi-functional debugger based on ESP32S3. The debugger integrates more than ten functions, including DAPlink, logic analyzer, and serial port assistant, covering most embedded debugging scenarios. In terms of hardware, a hierarchical architecture is adopted. With ESP32S3 as the core controller, and equipped with a screen, touch module, etc., the power control board and signal board are carefully designed to ensure stable operation. For the software, a foreground-background architecture is used. A development environment is built using tools such as VS Code and ARM-GCC to achieve software simulation and efficient interaction of each functional module. By establishing a comprehensive test environment, thorough tests are conducted on hardware functions, performance, as well as software unit and integration. The test results show that the debugger is fully functional and performs stably, effectively meeting diverse debugging needs in embedded development. It provides embedded developers with a convenient and efficient debugging tool and has positive significance for promoting the development of embedded technology.
Keywords：ESP32S3; Embedded Multi-functional Debugger; Hardware Design; Software Implementation; System Testing
目 录
摘 要 1
Abstract 1
第1章 绪论 4
1.1研究背景及意义 4
1.1.1 研究背景 4
1.1.2 研究意义 5
1.2国内外研究现状 6
1.2.1国内研究现状 6
1.2.2国外研究现状 7

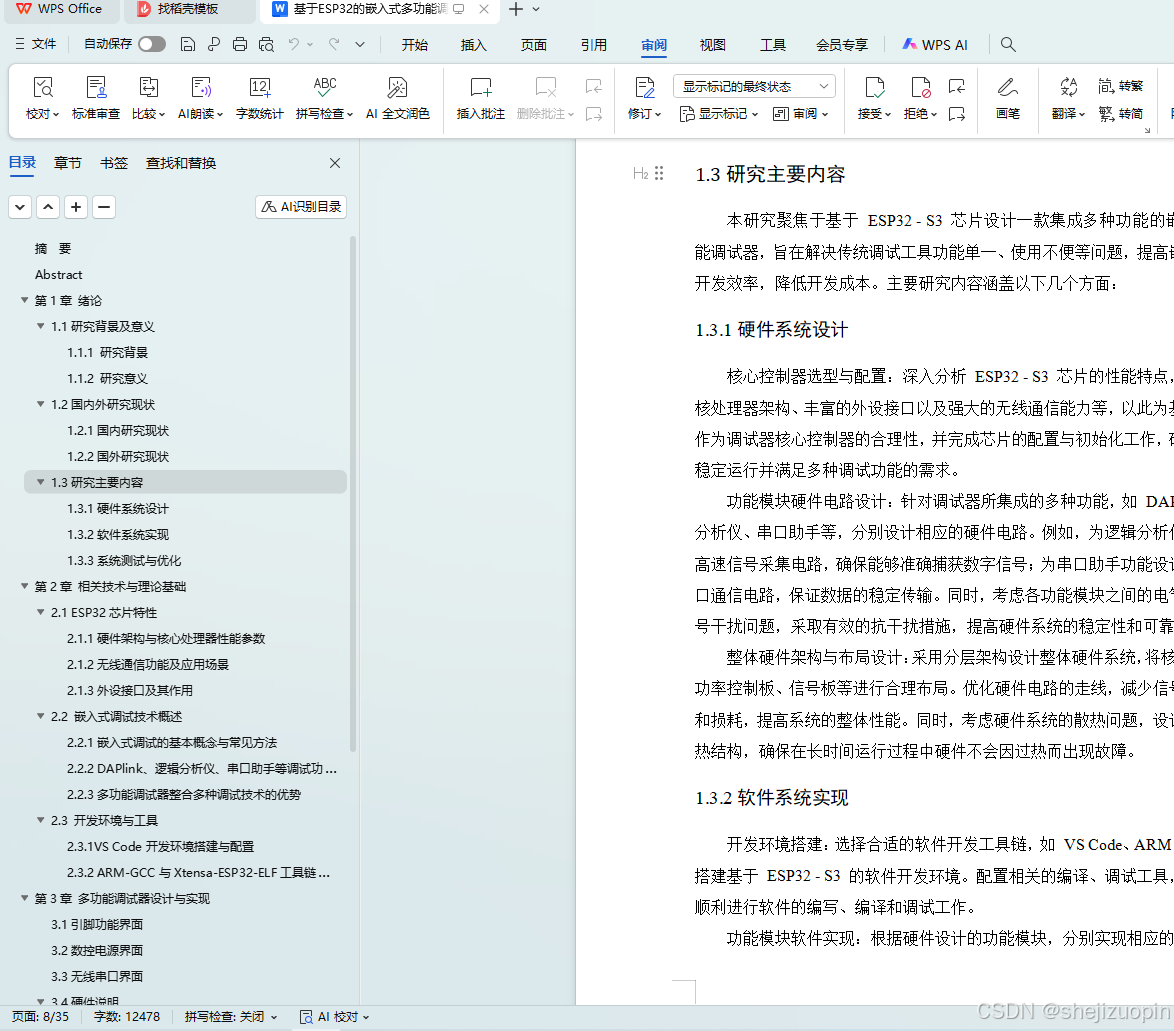

1.3研究主要内容 7
1.3.1硬件系统设计 7
1.3.2软件系统实现 8
1.3.3系统测试与优化 8

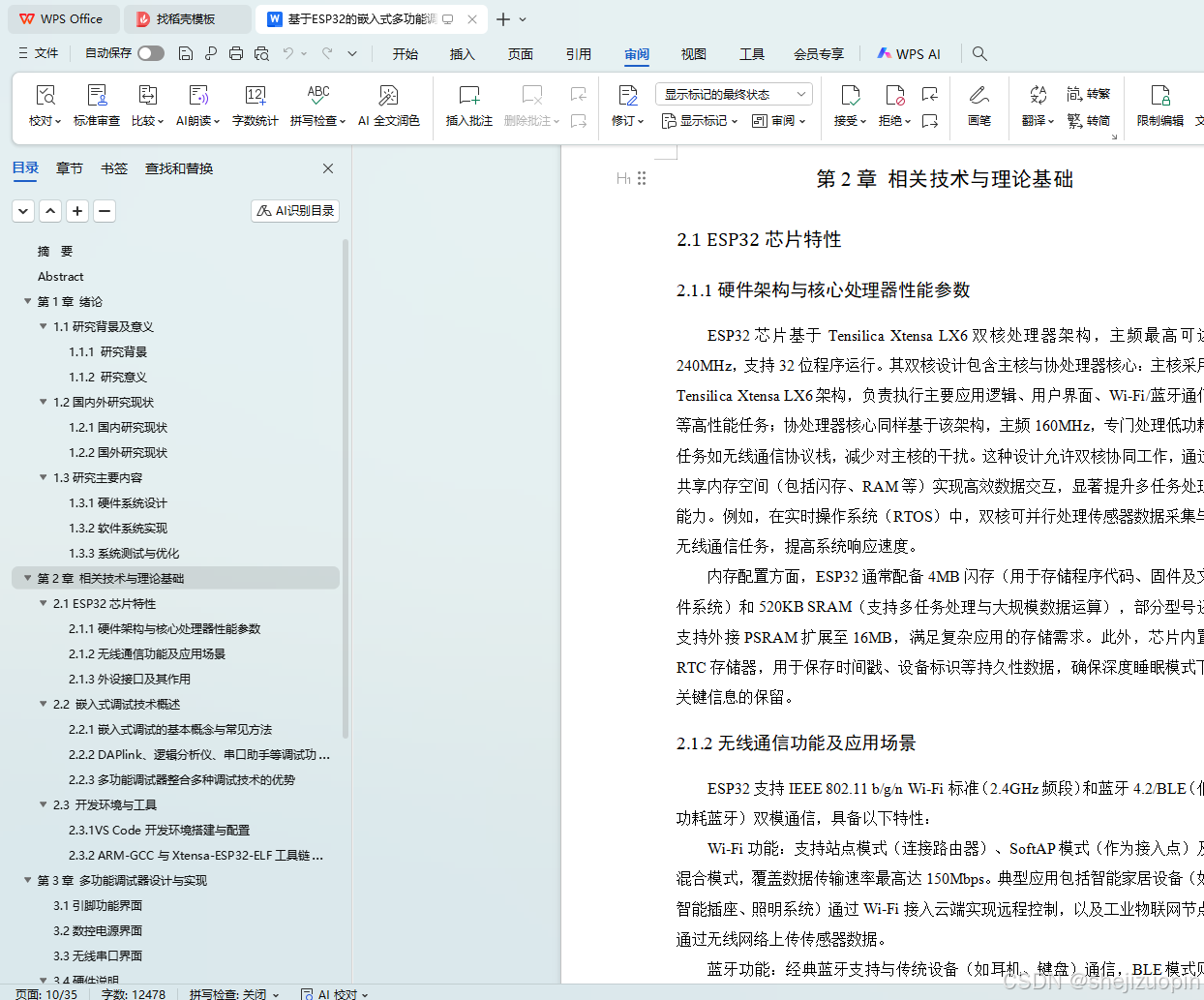

第2章 相关技术与理论基础 9
2.1 ESP32芯片特性 9
2.1.1硬件架构与核心处理器性能参数 9
2.1.2无线通信功能及应用场景 10
2.1.3外设接口及其作用 10
2.2 嵌入式调试技术概述 11
2.2.1嵌入式调试的基本概念与常见方法 11
2.2.2 DAPlink、逻辑分析仪、串口助手等调试功能的原理 12
2.2.3多功能调试器整合多种调试技术的优势 13
2.3 开发环境与工具 14
2.3.1VS Code开发环境搭建与配置 14
2.3.2 ARM-GCC与Xtensa-ESP32-ELF工具链的作用与安装 15
第3章 多功能调试器设计与实现 18

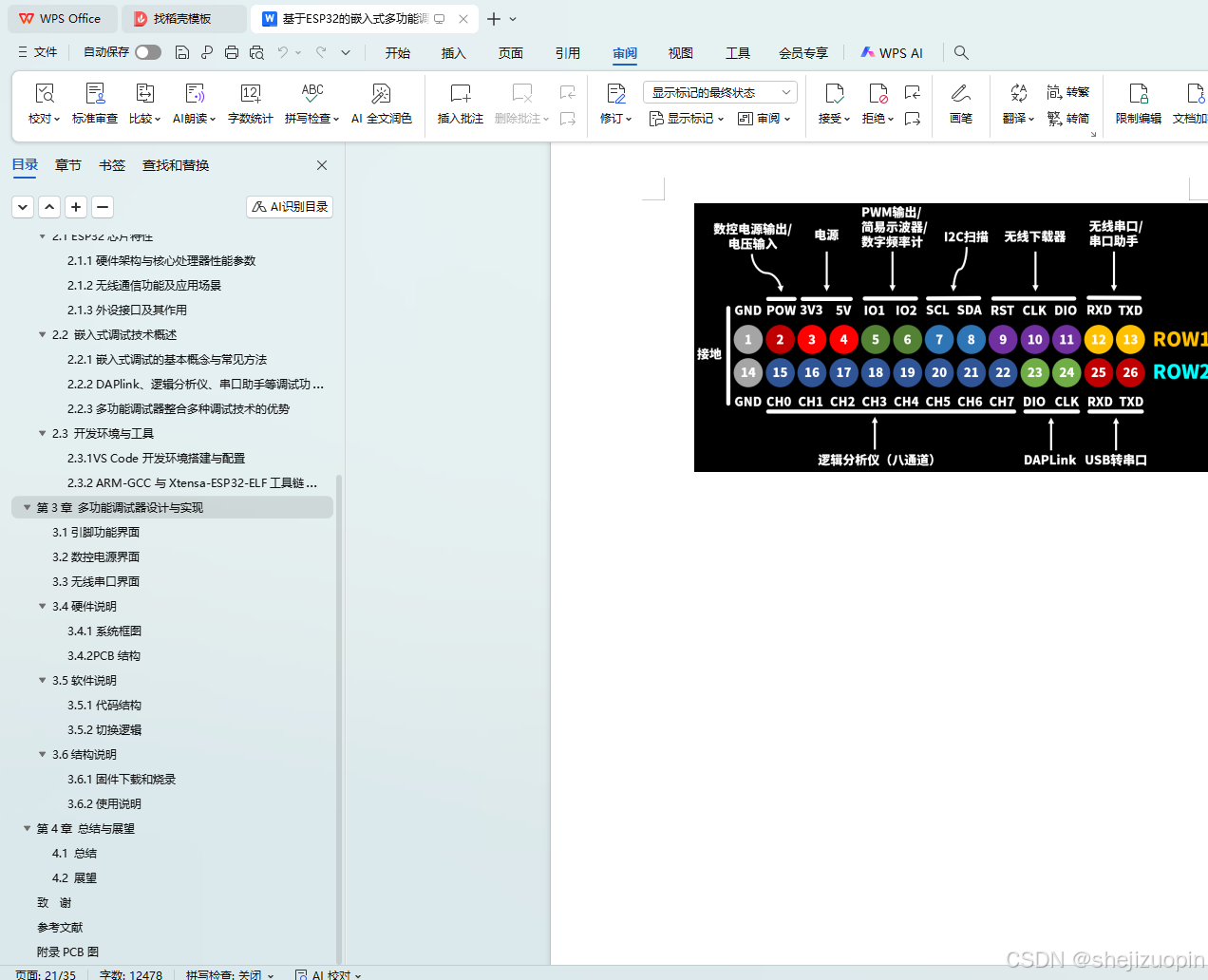

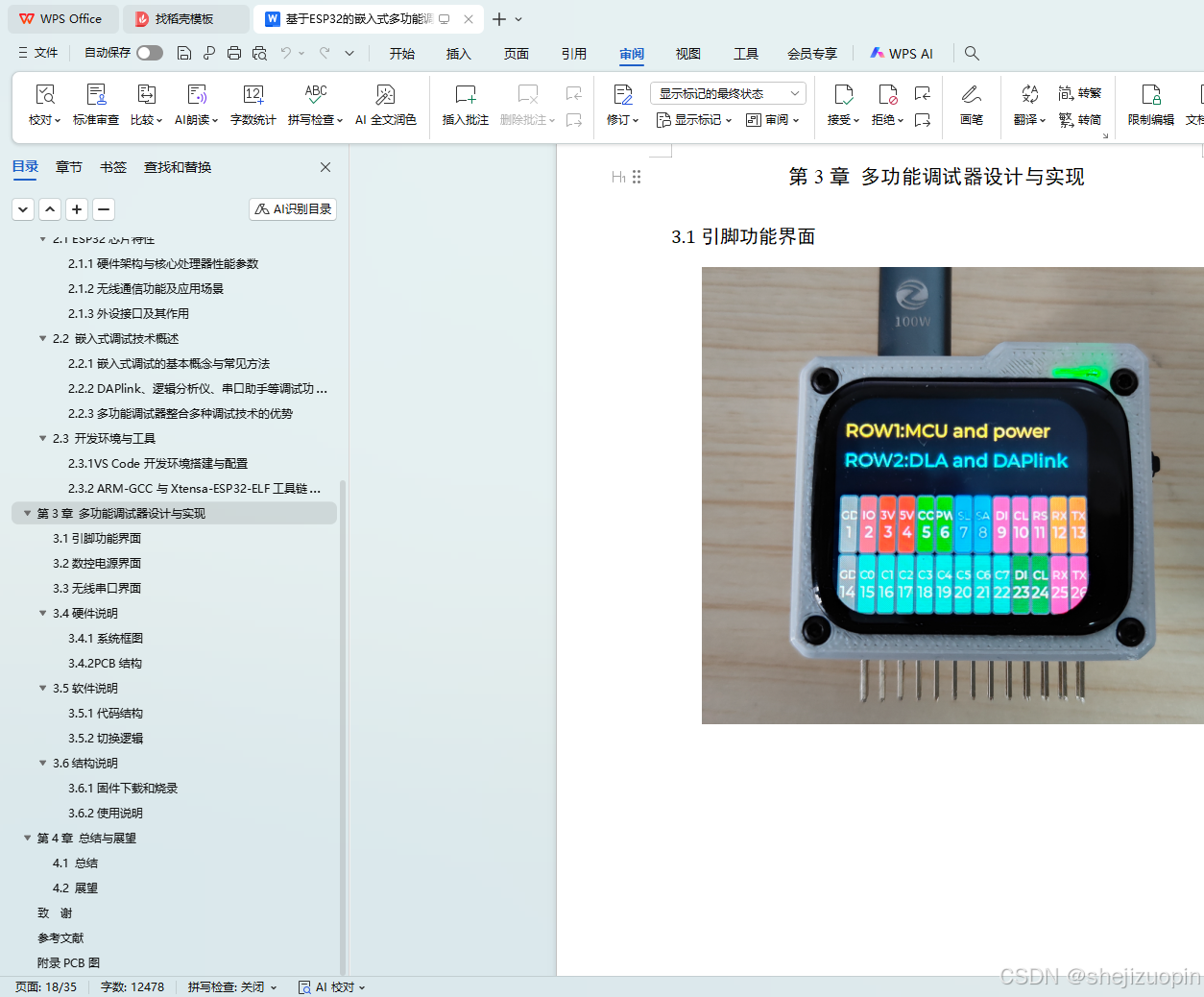

3.1引脚功能界面 18
3.2数控电源界面 19

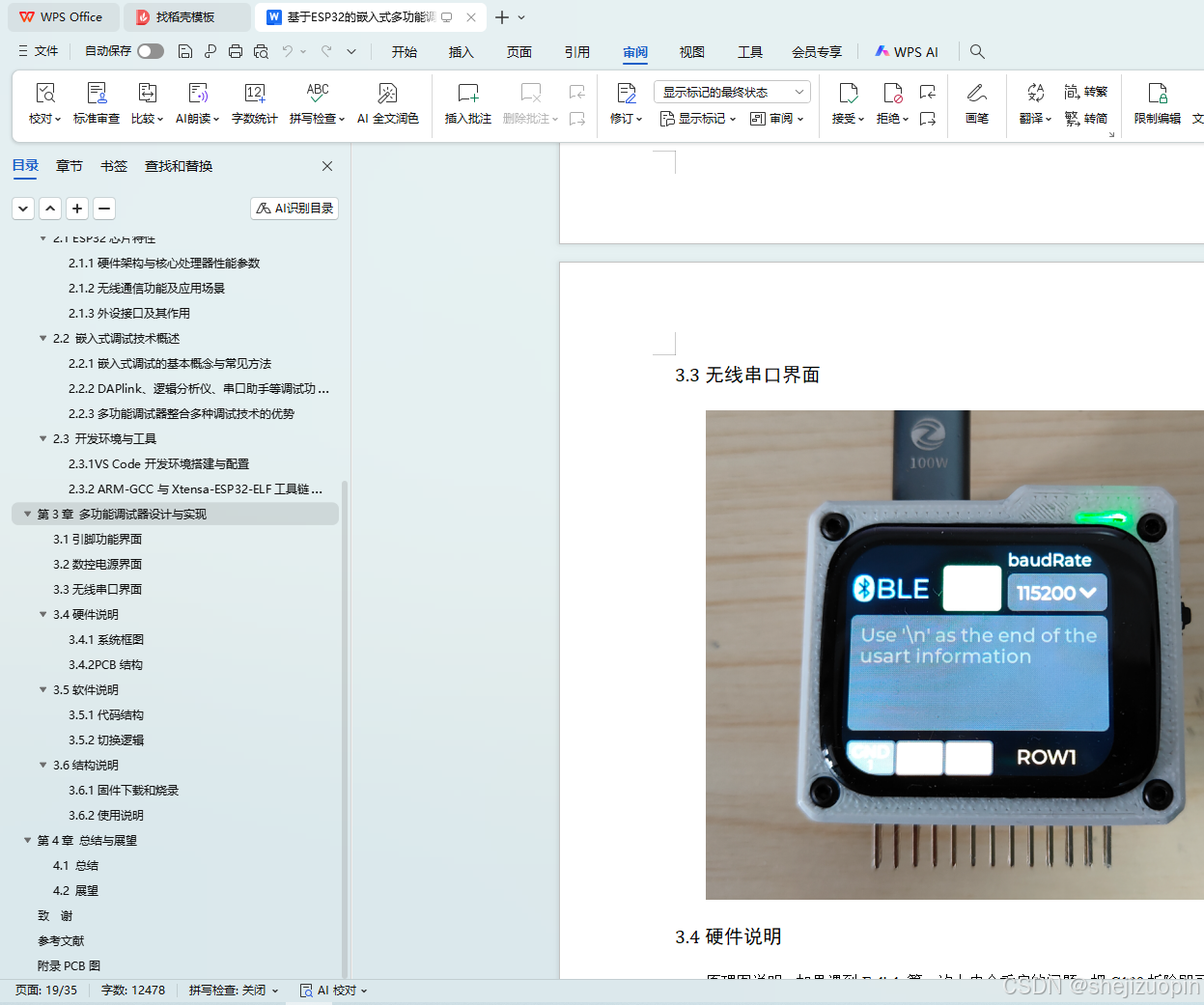

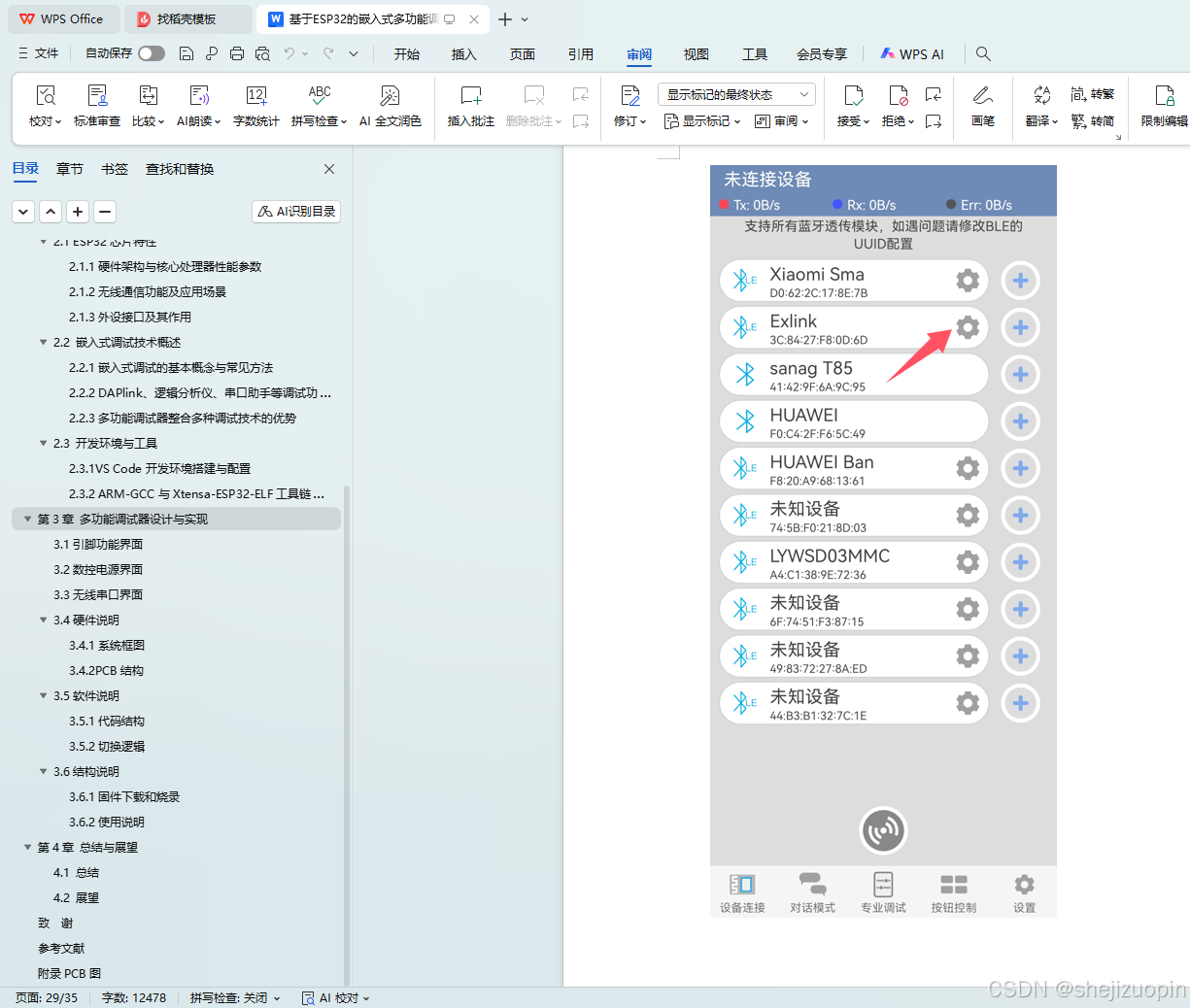

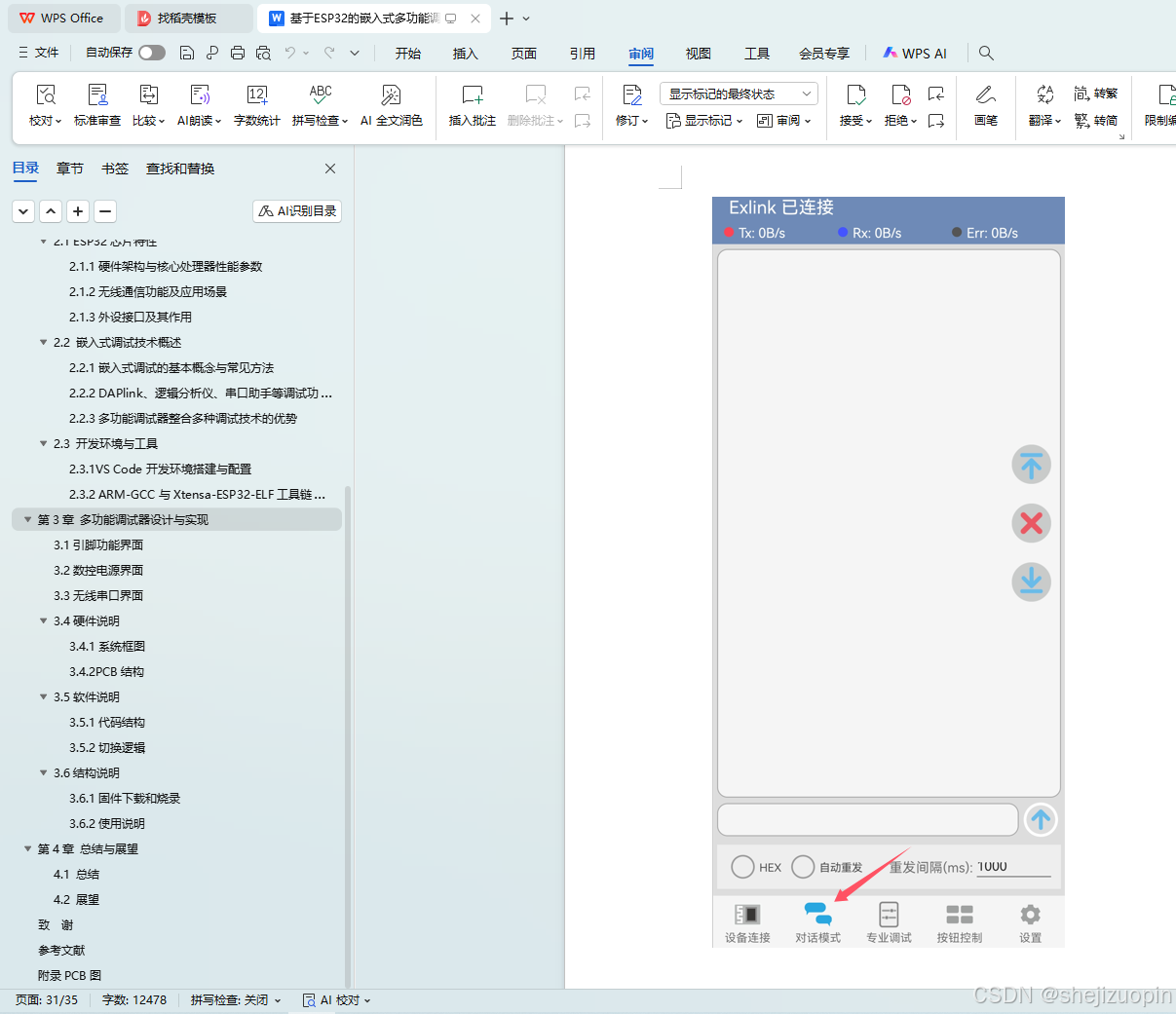

3.3无线串口界面 20
3.4硬件说明 20

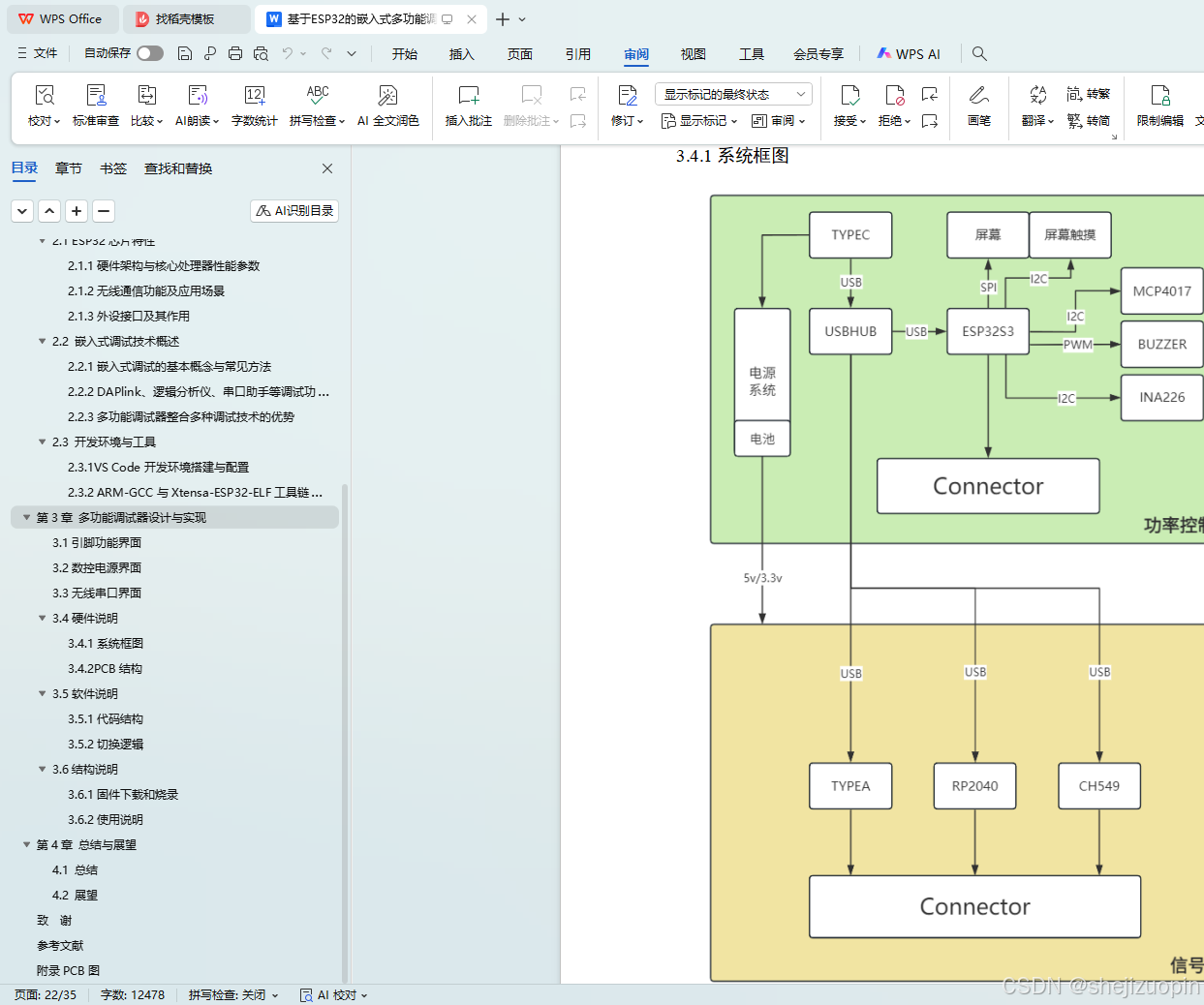

3.4.1系统框图 22
3.4.2PCB结构 23
3.5软件说明 24

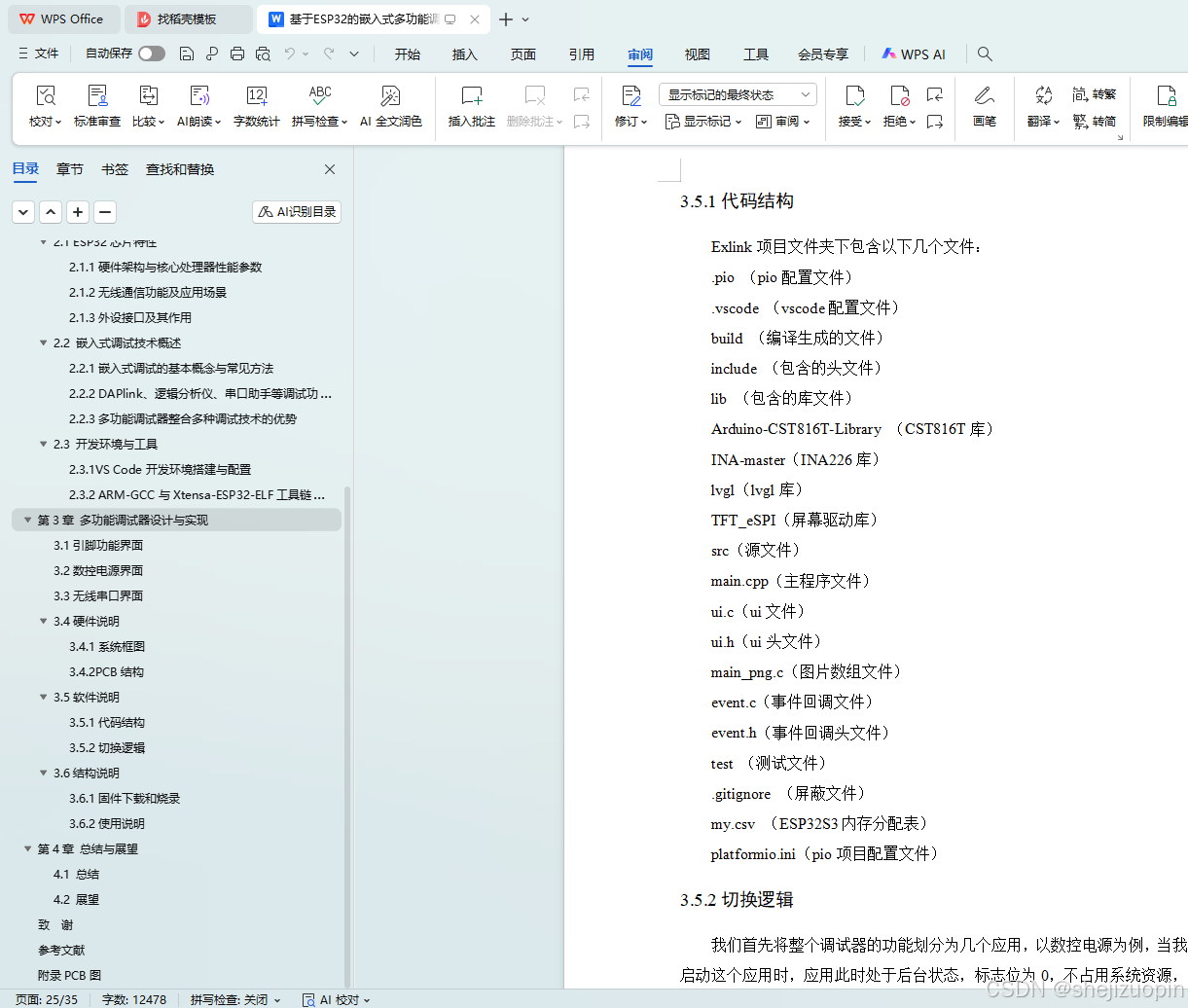

3.5.1代码结构 25
3.5.2切换逻辑 25
3.6结构说明 26

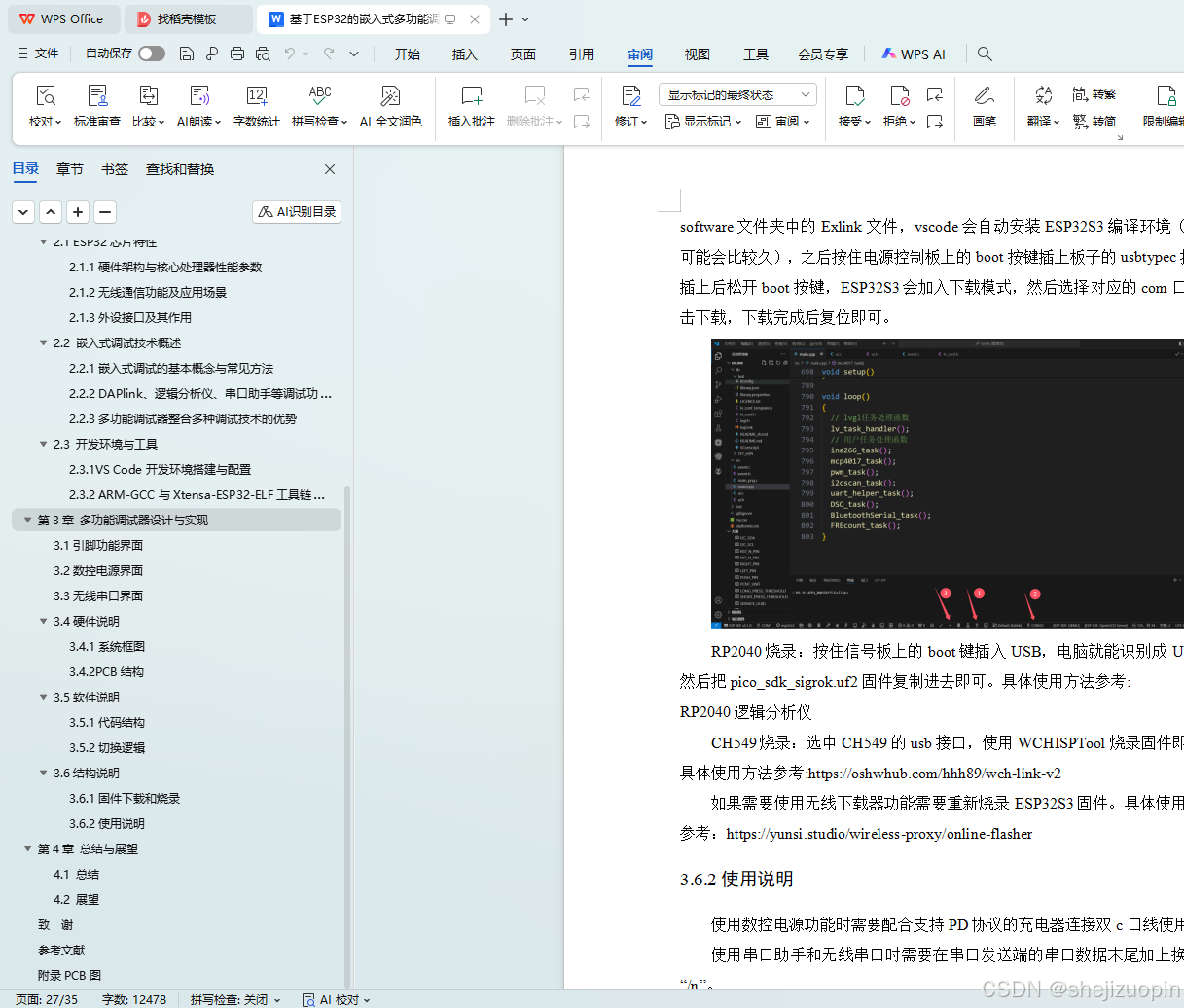

3.6.1固件下载和烧录 26
3.6.2使用说明 27

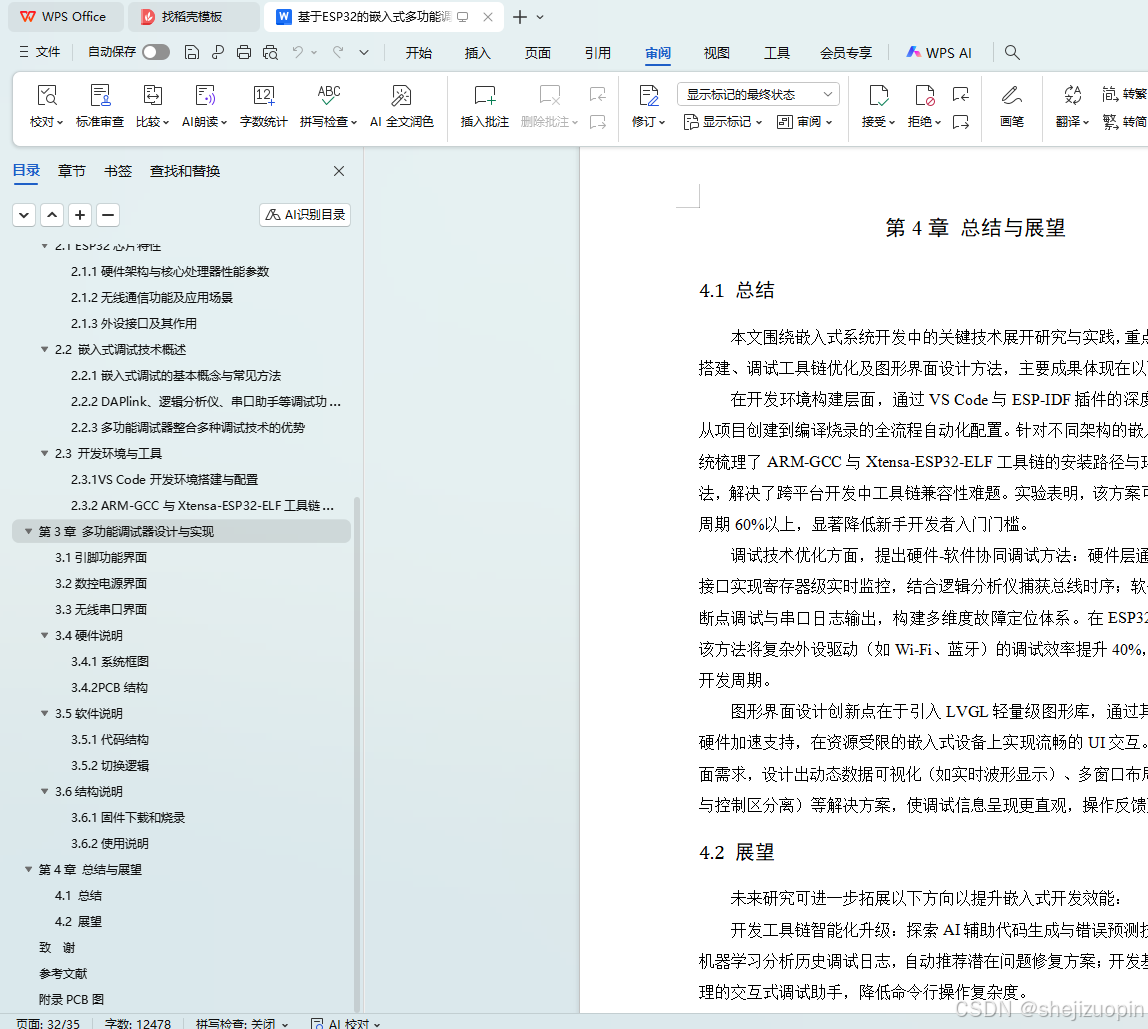

第4章 总结与展望 32
4.1 总结 32
4.2 展望 32
致 谢 34
参考文献 35

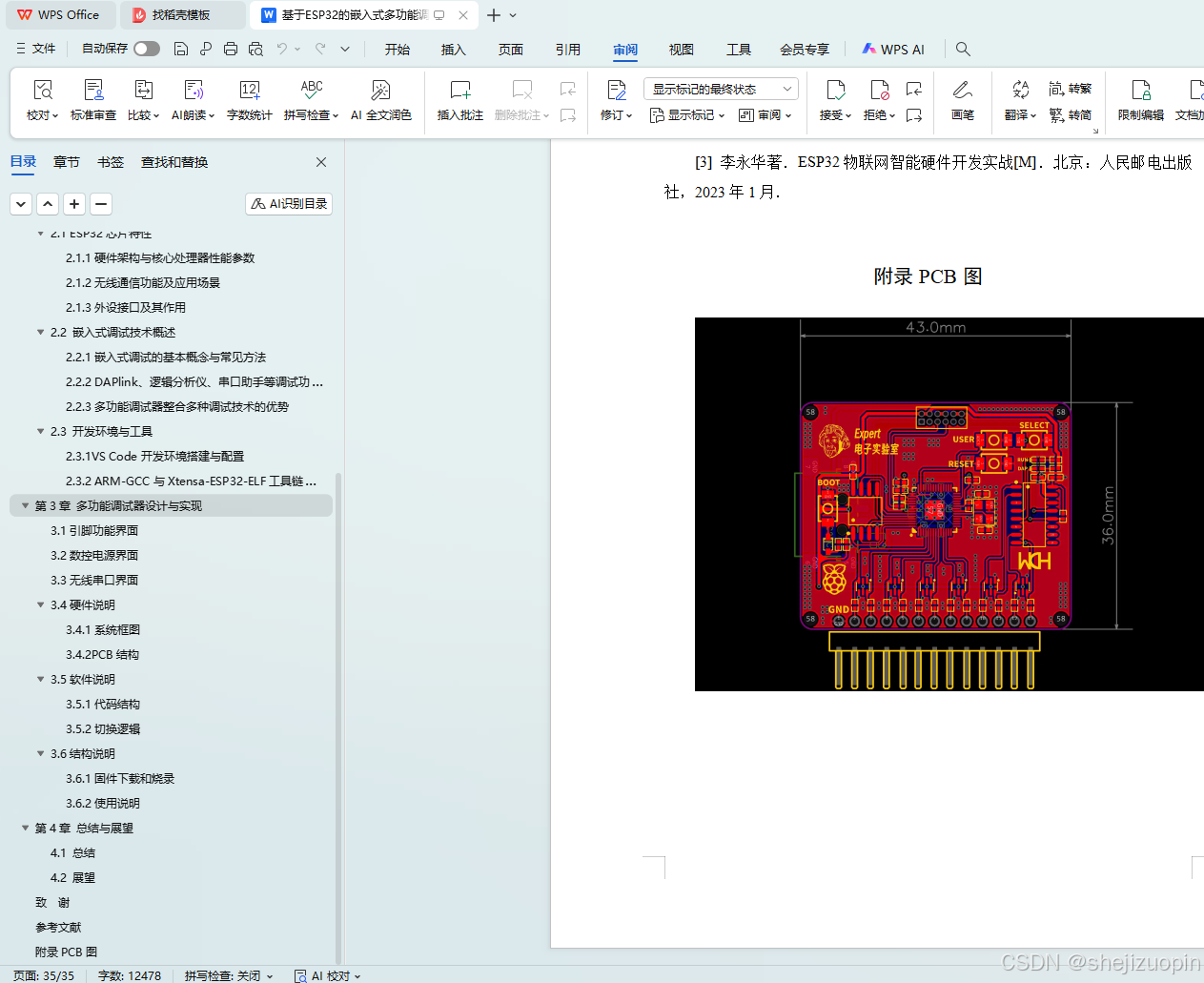

附录PCB图 35
#include <Arduino.h>
#include "ui.h"
#include "event.h"
// 定义线条的起始和结束位置
#define LINE_X1 60
#define LINE_X2 60
#define LINE_Y1 45
#define LINE_Y2 115
// 创建样式对象
lv_style_t style_rect;
extern double v, a, w;
void update_label_timer1(lv_timer_t *timer)
{
lv_obj_t *voltmeter_label1 = (lv_obj_t *)timer->user_data;
lv_label_set_text(voltmeter_label1, voltageStr);
}
void update_label_timer2(lv_timer_t *timer)
{
lv_obj_t *voltmeter_label2 = (lv_obj_t *)timer->user_data;
lv_label_set_text(voltmeter_label2, currentStr);
}
void update_label_timer3(lv_timer_t *timer)
{
lv_obj_t *voltmeter_label3 = (lv_obj_t *)timer->user_data;
lv_label_set_text(voltmeter_label3, powerStr);
}
void DSO_update_maxValue_timer(lv_timer_t *timer)
{
lv_obj_t *maxValue_label = (lv_obj_t *)timer->user_data;
lv_label_set_text(maxValue_label, maxValueStr);
}
void DSO_update_minValue_timer(lv_timer_t *timer)
{
lv_obj_t *minValue_label = (lv_obj_t *)timer->user_data;
lv_label_set_text(minValue_label, minValueStr);
}
void DSO_update_peakToPeakValue_timer(lv_timer_t *timer)
{
lv_obj_t *peakToPeakValue_label = (lv_obj_t *)timer->user_data;
lv_label_set_text(peakToPeakValue_label, peakToPeakValueStr);
}
void update_slider_timer(lv_timer_t *timer)
{
if (lv_obj_has_state(btn1, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 10, LV_ANIM_OFF);
}
if (lv_obj_has_state(btn2, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 9, LV_ANIM_OFF);
}
if (lv_obj_has_state(btn3, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 8, LV_ANIM_OFF);
}
if (lv_obj_has_state(btn4, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 7, LV_ANIM_OFF);
}
if (lv_obj_has_state(btn5, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 6, LV_ANIM_OFF);
}
if (lv_obj_has_state(btn6, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 5, LV_ANIM_OFF);
}
if (lv_obj_has_state(btn7, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 4, LV_ANIM_OFF);
}
if (lv_obj_has_state(btn8, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 3, LV_ANIM_OFF);
}
if (lv_obj_has_state(btn9, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 2, LV_ANIM_OFF);
}
if (lv_obj_has_state(btn10, LV_STATE_FOCUSED))
{
lv_slider_set_value(slider, 1, LV_ANIM_OFF);
}
float volt = analogRead(2);
float bat = volt / 4095 * 6.6;
if (bat >= 3.95)
{
lv_obj_set_pos(bat_label, 260, 196);
lv_label_set_text(bat_label, LV_SYMBOL_CHARGE);
}
if (bat < 3.95 && bat >= 3.7)
{
lv_obj_set_pos(bat_label, 251, 196);
lv_label_set_text(bat_label, LV_SYMBOL_BATTERY_FULL);
}
if (bat < 3.7 && bat >= 3.4)
{
lv_obj_set_pos(bat_label, 251, 196);
lv_label_set_text(bat_label, LV_SYMBOL_BATTERY_3);
}
if (bat < 3.4 && bat >= 3)
{
lv_obj_set_pos(bat_label, 251, 196);
lv_label_set_text(bat_label, LV_SYMBOL_BATTERY_2);
}
if (bat < 3 && bat >= 2.7)
{
lv_obj_set_pos(bat_label, 251, 196);
lv_label_set_text(bat_label, LV_SYMBOL_BATTERY_1);
}
if (bat < 2.6)
{
lv_obj_set_pos(bat_label, 251, 196);
lv_label_set_text(bat_label, LV_SYMBOL_BATTERY_EMPTY);
}
}
void FRE_label_update(lv_timer_t *timer)
{
lv_label_set_text(FRE_label, freqencyStr);
}
void add_data(lv_timer_t *timer)
{
lv_chart_set_next_value(volt_chart, timer->user_data, v);
// lv_label_set_text(label1, voltageStr);
}
void add_data2(lv_timer_t *timer)
{
lv_chart_set_next_value(cur_chart, timer->user_data, a * 100);
// lv_label_set_text(label1, voltageStr);
}
// 创建启动动画
void create_boot_animation(void)
{
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
ui_Image1 = lv_img_create(lv_scr_act());
lv_img_set_src(ui_Image1, &ui_img_game3_png);
lv_obj_set_width(ui_Image1, LV_SIZE_CONTENT);
lv_obj_set_height(ui_Image1, LV_SIZE_CONTENT);
lv_obj_set_pos(ui_Image1, 65, 50);
lv_obj_add_flag(ui_Image1, LV_OBJ_FLAG_ADV_HITTEST);
lv_obj_clear_flag(ui_Image1, LV_OBJ_FLAG_SCROLLABLE);
// 初始化动画
lv_anim_t anim1;
lv_anim_init(&anim1); // 初始化动画结构体
lv_anim_set_exec_cb(&anim1, anim_cb1); // 设置动画回调函数
lv_anim_set_var(&anim1, ui_Image1); // 设置动画作用的对象
lv_anim_set_time(&anim1, 450); // 设置动画时间
lv_anim_set_values(&anim1, 35, 80); // 设置运动轨迹
lv_anim_set_path_cb(&anim1, lv_anim_path_overshoot); // 使用“overshoot”路径效果，使动画更加生动
lv_obj_t *line = lv_line_create(lv_scr_act());
// 设置线条的起始和结束点
static lv_point_t points[] = {{LINE_X1, LINE_Y1}, {LINE_X2, LINE_Y2}};
lv_line_set_points(line, points, 2);
// 设置线条的样式
lv_obj_set_style_line_width(line, 10, 0);
lv_obj_set_style_line_color(line, lv_color_hex(0xFF0000), 0); // 红色
lv_obj_set_style_line_rounded(line, true, LV_PART_MAIN);
lv_anim_t anim2;
lv_anim_init(&anim2); // 初始化动画结构体
lv_anim_set_var(&anim2, line); // 设置动画作用的对象
lv_anim_set_exec_cb(&anim2, (lv_anim_exec_xcb_t)anim_cb2); // 设置动画回调函数
lv_anim_set_values(&anim2, -100, 15); // 设置运动轨迹
lv_anim_set_time(&anim2, 450); // 设置动画时间
lv_anim_set_path_cb(&anim2, lv_anim_path_overshoot); // 动画路径线性
ui_Image2 = lv_img_create(lv_scr_act());
lv_img_set_src(ui_Image2, &Exlink_png);
lv_obj_set_width(ui_Image2, LV_SIZE_CONTENT);
lv_obj_set_height(ui_Image2, LV_SIZE_CONTENT);
lv_obj_set_pos(ui_Image2, 55, 150);
lv_obj_add_flag(ui_Image2, LV_OBJ_FLAG_ADV_HITTEST);
lv_obj_clear_flag(ui_Image2, LV_OBJ_FLAG_SCROLLABLE);
lv_anim_t anim3;
lv_anim_init(&anim3); // 初始化动画结构体
lv_anim_set_var(&anim3, ui_Image2); // 设置动画作用的对象
lv_anim_set_exec_cb(&anim3, (lv_anim_exec_xcb_t)anim_cb2); // 设置动画回调函数
lv_anim_set_values(&anim3, 240, 150); // 设置运动轨迹
lv_anim_set_time(&anim3, 450); // 动画时间
lv_anim_set_path_cb(&anim3, lv_anim_path_overshoot); // 动画路径线性
lv_obj_t *label = lv_label_create(lv_scr_act()); /* 创建标签 */
lv_label_set_text(label, ""); /* 设置文本内容 */
lv_obj_align(label, LV_ALIGN_TOP_LEFT, 0, 0); /* 设置位置 */
lv_anim_t anim4;
lv_anim_init(&anim4); // 初始化动画结构体
lv_anim_set_var(&anim4, label); // 设置动画作用的对象
lv_anim_set_ready_cb(&anim4, anim_end_callback);
lv_anim_set_exec_cb(&anim4, (lv_anim_exec_xcb_t)anim_cb2); // 设置动画回调函数
lv_anim_set_values(&anim4, 30, 30); // 设置动画轨迹
lv_anim_set_time(&anim4, 2000); // 设置动画时间为 2000 毫秒
lv_anim_set_path_cb(&anim4, lv_anim_path_overshoot); // 动画路径线性
// lv_anim_start(&anim2); // 启动动画
// 设置动画时间线
lv_anim_timeline_t *anim_timeline = lv_anim_timeline_create();
lv_anim_timeline_add(anim_timeline, 0, &anim1);
lv_anim_timeline_add(anim_timeline, 150, &anim2);
lv_anim_timeline_add(anim_timeline, 200, &anim3);
lv_anim_timeline_add(anim_timeline, 200, &anim4);
// 启动动画时间线
lv_anim_timeline_start(anim_timeline);
}
void ui_Screen1_screen_init(void) // 创建主界面
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
panel = lv_obj_create(lv_scr_act());
lv_obj_set_size(panel, 230, 240);
lv_obj_set_pos(panel, 10, 0);
lv_obj_set_style_bg_color(panel, lv_color_hex(0x000000), 0);
lv_obj_set_style_border_width(panel, 0, 0);
lv_obj_remove_style(panel, 0, LV_PART_SCROLLBAR);
lv_obj_set_flex_flow(panel, LV_FLEX_FLOW_COLUMN); // 垂直排列子对象
lv_obj_set_scroll_dir(panel, LV_DIR_VER);
lv_style_init(&style_rect);
// 设置边框的颜色和粗细
lv_style_set_border_color(&style_rect, lv_color_hex(0xFF0000)); // 红色边框
lv_style_set_border_width(&style_rect, 3); // 5 像素粗细
lv_style_set_bg_color(&style_rect, lv_color_hex(0x000000)); // 白色背景
lv_style_set_radius(&style_rect, 20); // 圆角半径
// 设置聚焦状态的边框
static lv_style_t focused_style;
lv_style_init(&focused_style);
lv_style_set_border_color(&focused_style, lv_color_hex(0xFFD700));
lv_style_set_border_width(&focused_style, 5);
btn1 = lv_btn_create(panel);
lv_obj_set_size(btn1, 215, 80);
lv_obj_align(btn1, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn1, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_style(btn1, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(btn1, btn1_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *btn1_label = lv_label_create(btn1);
lv_obj_align(btn1_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn1_label, "Pin Map");
lv_obj_set_style_text_font(btn1_label, &lv_font_montserrat_20, 0);
lv_obj_t *img1 = lv_img_create(btn1);
lv_img_set_src(img1, &pinmap_png); // Replace with your image variable or path
lv_obj_set_size(img1, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img1, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
btn2 = lv_btn_create(panel);
lv_obj_set_size(btn2, 215, 80);
lv_obj_align(btn2, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn2, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_style(btn2, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(btn2, btn2_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *btn2_label = lv_label_create(btn2);
lv_obj_align(btn2_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn2_label, "DC POWER");
lv_obj_set_style_text_font(btn2_label, &lv_font_montserrat_20, 0);
lv_obj_t *img2 = lv_img_create(btn2);
lv_img_set_src(img2, &power_png); // Replace with your image variable or path
lv_obj_set_size(img2, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img2, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
btn3 = lv_btn_create(panel);
lv_obj_set_size(btn3, 215, 80);
lv_obj_align(btn3, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn3, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_event_cb(btn3, btn3_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_add_style(btn3, &focused_style, LV_STATE_FOCUSED);
lv_obj_t *btn3_label = lv_label_create(btn3);
lv_obj_align(btn3_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn3_label, "PWM OUT");
lv_obj_set_style_text_font(btn3_label, &lv_font_montserrat_20, 0);
lv_obj_t *img3 = lv_img_create(btn3);
lv_img_set_src(img3, &pwm_png); // Replace with your image variable or path
lv_obj_set_size(img3, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img3, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
btn4 = lv_btn_create(panel);
lv_obj_set_size(btn4, 215, 80);
lv_obj_align(btn4, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn4, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_style(btn4, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(btn4, btn4_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *btn4_label = lv_label_create(btn4);
lv_obj_align(btn4_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn4_label, "UART HELPER");
lv_obj_set_style_text_font(btn4_label, &lv_font_montserrat_16, 0);
lv_obj_t *img4 = lv_img_create(btn4);
lv_img_set_src(img4, &usarthelper_png); // Replace with your image variable or path
lv_obj_set_size(img4, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img4, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
btn5 = lv_btn_create(panel);
lv_obj_set_size(btn5, 215, 80);
lv_obj_align(btn5, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn5, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_style(btn5, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(btn5, btn5_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *btn5_label = lv_label_create(btn5);
lv_obj_align(btn5_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn5_label, "I2C SCAN");
lv_obj_set_style_text_font(btn5_label, &lv_font_montserrat_20, 0);
lv_obj_t *img5 = lv_img_create(btn5);
lv_img_set_src(img5, &i2c_png); // Replace with your image variable or path
lv_obj_set_size(img5, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img5, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
btn6 = lv_btn_create(panel);
lv_obj_set_size(btn6, 215, 80);
lv_obj_align(btn6, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn6, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_style(btn6, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(btn6, btn6_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_add_event_cb(btn6, btn6_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *btn6_label = lv_label_create(btn6);
lv_obj_align(btn6_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn6_label, "Voltmeter");
lv_obj_set_style_text_font(btn6_label, &lv_font_montserrat_20, 0);
lv_obj_t *img6 = lv_img_create(btn6);
lv_img_set_src(img6, &voltmeter_png); // Replace with your image variable or path
lv_obj_set_size(img6, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img6, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
btn7 = lv_btn_create(panel);
lv_obj_set_size(btn7, 215, 80);
lv_obj_align(btn7, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn7, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_style(btn7, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(btn7, btn7_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *btn7_label = lv_label_create(btn7);
lv_obj_align(btn7_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn7_label, "Simple DSO");
lv_obj_set_style_text_font(btn7_label, &lv_font_montserrat_20, 0);
lv_obj_t *img7 = lv_img_create(btn7);
lv_img_set_src(img7, &DSO_png); // Replace with your image variable or path
lv_obj_set_size(img7, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img7, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
btn8 = lv_btn_create(panel);
lv_obj_set_size(btn8, 215, 80);
lv_obj_align(btn8, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn8, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_style(btn8, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(btn8, btn8_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *btn8_label = lv_label_create(btn8);
lv_obj_align(btn8_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn8_label, "BLE UART");
lv_obj_set_style_text_font(btn8_label, &lv_font_montserrat_20, 0);
lv_obj_t *img8 = lv_img_create(btn8);
lv_img_set_src(img8, &wireless_png); // Replace with your image variable or path
lv_obj_set_size(img8, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img8, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
btn9 = lv_btn_create(panel);
lv_obj_set_size(btn9, 215, 80);
lv_obj_align(btn9, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn9, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_style(btn9, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(btn9, btn9_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *btn9_label = lv_label_create(btn9);
lv_obj_align(btn9_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn9_label, "FRE Count");
lv_obj_set_style_text_font(btn9_label, &lv_font_montserrat_20, 0);
lv_obj_t *img9 = lv_img_create(btn9);
lv_img_set_src(img9, &FREcounter_png); // Replace with your image variable or path
lv_obj_set_size(img9, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img9, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
btn10 = lv_btn_create(panel);
lv_obj_set_size(btn10, 215, 80);
lv_obj_align(btn10, LV_ALIGN_OUT_RIGHT_TOP, 0, 0);
lv_obj_add_style(btn10, &style_rect, 0); // 将样式应用到矩形上
lv_obj_add_style(btn10, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(btn10, btn10_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *btn10_label = lv_label_create(btn10);
lv_obj_align(btn10_label, LV_ALIGN_OUT_RIGHT_MID, 0, 18);
lv_label_set_text(btn10_label, "Device INFO");
lv_obj_set_style_text_font(btn10_label, &lv_font_montserrat_20, 0);
lv_obj_t *img10 = lv_img_create(btn10);
lv_img_set_src(img10, &readme_png); // Replace with your image variable or path
lv_obj_set_size(img10, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img10, LV_ALIGN_OUT_RIGHT_MID, 126, 0); // Center the image within the button
lv_style_init(&style_rect);
// 设置边框的颜色和粗细
lv_style_set_border_color(&style_rect, lv_color_hex(0xFF0000)); // 红色边框
lv_style_set_border_width(&style_rect, 3); // 5 像素粗细
lv_style_set_bg_color(&style_rect, lv_color_hex(0x000000)); // 白色背景
lv_style_set_radius(&style_rect, 20); // 圆角半径
slider = lv_slider_create(lv_scr_act());
lv_obj_set_size(slider, 15, 90);
lv_obj_set_pos(slider, 260, 30);
lv_slider_set_range(slider, 1, 10);
lv_slider_set_value(slider, 10, LV_ANIM_OFF);
lv_obj_set_style_bg_opa(slider, LV_OPA_COVER, 0);
lv_obj_set_style_bg_color(slider, lv_color_hex(0xFF0000), LV_PART_KNOB);
lv_obj_set_style_bg_color(slider, lv_color_hex(0x333333), LV_PART_MAIN);
lv_obj_set_style_bg_color(slider, lv_color_hex(0x333333), LV_PART_INDICATOR);
lv_obj_add_event_cb(slider, slider_event_cb, LV_EVENT_ALL, NULL);
slider_update_timer = lv_timer_create(update_slider_timer, 300, NULL);
lv_obj_update_snap(panel, LV_ANIM_OFF);
/*
lv_obj_t *bat_volt_label = lv_label_create(lv_scr_act());
lv_label_set_text(bat_volt_label, "100");
lv_obj_set_pos(bat_volt_label, 251, 220);
lv_obj_set_style_text_color(bat_volt_label, lv_color_hex(0xFFFFFF), 0);
lv_obj_set_style_text_font(bat_volt_label, &lv_font_montserrat_10, 0);
lv_obj_t *bat_volt_label2 = lv_label_create(lv_scr_act());
lv_obj_set_pos(bat_volt_label2, 275, 220);
lv_label_set_text(bat_volt_label2, "%");
lv_obj_set_style_text_color(bat_volt_label2, lv_color_hex(0xFFFFFF), 0);
lv_obj_set_style_text_font(bat_volt_label2, &lv_font_montserrat_14, 0);
*/
bat_label = lv_label_create(lv_scr_act());
lv_label_set_text(bat_label, " ");
lv_obj_set_pos(bat_label, 251, 196);
lv_obj_set_style_text_color(bat_label, lv_color_hex(0x32CD32), 0);
lv_obj_set_style_text_font(bat_label, &lv_font_montserrat_26, 0);
group = lv_group_create();
lv_indev_set_group(indev_keypad, group);
lv_group_add_obj(group, btn1);
lv_group_add_obj(group, btn2);
lv_group_add_obj(group, btn3);
lv_group_add_obj(group, btn4);
lv_group_add_obj(group, btn5);
lv_group_add_obj(group, btn6);
lv_group_add_obj(group, btn7);
lv_group_add_obj(group, btn8);
lv_group_add_obj(group, btn9);
lv_group_add_obj(group, btn10);
}
void pinmap_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
lv_obj_t *name_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(name_label1, "#FFD700 ROW1:MCU and power#"); // 设置文本内容
lv_obj_set_style_text_font(name_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(name_label1, 30, 26);
lv_label_set_recolor(name_label1, true);
lv_obj_t *name_label2 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(name_label2, "#00FFFF ROW2:DLA and DAPlink#"); // 设置文本内容
lv_obj_set_style_text_font(name_label2, &lv_font_montserrat_20, 0);
lv_obj_set_pos(name_label2, 30, 60);
lv_label_set_recolor(name_label2, true);
lv_obj_t *rounded_rect1 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect1, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect1, 21, 65);
lv_obj_set_pos(rounded_rect1, 26, 110);
lv_obj_set_style_radius(rounded_rect1, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect1, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect1_label1 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label1, "GD"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect1_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect1_label2 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label2, "1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect1_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect2, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect2, 21, 65);
lv_obj_set_pos(rounded_rect2, 47, 110);
lv_obj_set_style_radius(rounded_rect2, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect2, lv_color_hex(0xA52A2A), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect2_label1 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label1, "IO"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect2_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2_label2 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label2, "2"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect2_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect3 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect3, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect3, 21, 65);
lv_obj_set_pos(rounded_rect3, 68, 110);
lv_obj_set_style_radius(rounded_rect3, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect3, lv_color_hex(0xFF0000), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect3_label1 = lv_label_create(rounded_rect3); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect3_label1, "3V"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect3_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect3_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect3_label2 = lv_label_create(rounded_rect3); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect3_label2, "3"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect3_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect3_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect4 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect4, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect4, 21, 65);
lv_obj_set_pos(rounded_rect4, 89, 110);
lv_obj_set_style_radius(rounded_rect4, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect4, lv_color_hex(0xFF0000), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect4_label1 = lv_label_create(rounded_rect4); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect4_label1, "5V"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect4_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect4_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect4_label2 = lv_label_create(rounded_rect4); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect4_label2, "4"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect4_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect4_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect5 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect5, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect5, 21, 65);
lv_obj_set_pos(rounded_rect5, 110, 110);
lv_obj_set_style_radius(rounded_rect5, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect5, lv_color_hex(0x008000), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect5_label1 = lv_label_create(rounded_rect5); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect5_label1, "CO"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect5_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect5_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect5_label2 = lv_label_create(rounded_rect5); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect5_label2, "5"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect5_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect5_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect6 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect6, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect6, 21, 65);
lv_obj_set_pos(rounded_rect6, 131, 110);
lv_obj_set_style_radius(rounded_rect6, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect6, lv_color_hex(0x008000), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect6_label1 = lv_label_create(rounded_rect6); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect6_label1, "PW"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect6_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect6_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect6_label2 = lv_label_create(rounded_rect6); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect6_label2, "6"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect6_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect6_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect7 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect7, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect7, 21, 65);
lv_obj_set_pos(rounded_rect7, 152, 110);
lv_obj_set_style_radius(rounded_rect7, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect7, lv_color_hex(0x0000FF), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect7_label1 = lv_label_create(rounded_rect7); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect7_label1, "SL"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect7_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect7_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect7_label2 = lv_label_create(rounded_rect7); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect7_label2, "7"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect7_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect7_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect8 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect8, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect8, 21, 65);
lv_obj_set_pos(rounded_rect8, 173, 110);
lv_obj_set_style_radius(rounded_rect8, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect8, lv_color_hex(0x0000FF), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect8_label1 = lv_label_create(rounded_rect8); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect8_label1, "SA"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect8_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect8_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect8_label2 = lv_label_create(rounded_rect8); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect8_label2, "8"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect8_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect8_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect9 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect9, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect9, 21, 65);
lv_obj_set_pos(rounded_rect9, 194, 110);
lv_obj_set_style_radius(rounded_rect9, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect9, lv_color_hex(0xC71585), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect9_label1 = lv_label_create(rounded_rect9); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect9_label1, "DI"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect9_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect9_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect9_label2 = lv_label_create(rounded_rect9); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect9_label2, "9"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect9_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect9_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect10 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect10, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect10, 21, 65);
lv_obj_set_pos(rounded_rect10, 215, 110);
lv_obj_set_style_radius(rounded_rect10, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect10, lv_color_hex(0xC71585), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect10_label1 = lv_label_create(rounded_rect10); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect10_label1, "CL"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect10_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect10_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect10_label2 = lv_label_create(rounded_rect10); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect10_label2, "10"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect10_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect10_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect11 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect11, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect11, 21, 65);
lv_obj_set_pos(rounded_rect11, 236, 110);
lv_obj_set_style_radius(rounded_rect11, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect11, lv_color_hex(0xC71585), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect11_label1 = lv_label_create(rounded_rect11); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect11_label1, "RS"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect11_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect11_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect11_label2 = lv_label_create(rounded_rect11); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect11_label2, "11"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect11_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect11_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect12 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect12, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect12, 21, 65);
lv_obj_set_pos(rounded_rect12, 257, 110);
lv_obj_set_style_radius(rounded_rect12, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect12, lv_color_hex(0xFF8C00), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect12_label1 = lv_label_create(rounded_rect12); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect12_label1, "RX"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect12_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect12_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect12_label2 = lv_label_create(rounded_rect12); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect12_label2, "12"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect12_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect12_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect13 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect13, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect13, 21, 65);
lv_obj_set_pos(rounded_rect13, 278, 110);
lv_obj_set_style_radius(rounded_rect13, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect13, lv_color_hex(0xFF8C00), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect13_label1 = lv_label_create(rounded_rect13); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect13_label1, "TX"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect13_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect13_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect13_label2 = lv_label_create(rounded_rect13); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect13_label2, "13"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect13_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect13_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect14 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect14, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect14, 21, 65);
lv_obj_set_pos(rounded_rect14, 26, 175);
lv_obj_set_style_radius(rounded_rect14, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect14, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect14_label1 = lv_label_create(rounded_rect14); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect14_label1, "GD"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect14_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect14_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect14_label2 = lv_label_create(rounded_rect14); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect14_label2, "14"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect14_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect14_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect15 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect15, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect15, 21, 65);
lv_obj_set_pos(rounded_rect15, 47, 175);
lv_obj_set_style_radius(rounded_rect15, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect15, lv_color_hex(0x20B2AA), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect15_label1 = lv_label_create(rounded_rect15); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect15_label1, "C0"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect15_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect15_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect15_label2 = lv_label_create(rounded_rect15); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect15_label2, "15"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect15_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect15_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect16 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect16, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect16, 21, 65);
lv_obj_set_pos(rounded_rect16, 68, 175);
lv_obj_set_style_radius(rounded_rect16, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect16, lv_color_hex(0x20B2AA), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect16_label1 = lv_label_create(rounded_rect16); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect16_label1, "C1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect16_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect16_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect16_label2 = lv_label_create(rounded_rect16); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect16_label2, "16"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect16_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect16_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect17 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect17, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect17, 21, 65);
lv_obj_set_pos(rounded_rect17, 89, 175);
lv_obj_set_style_radius(rounded_rect17, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect17, lv_color_hex(0x20B2AA), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect17_label1 = lv_label_create(rounded_rect17); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect17_label1, "C2"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect17_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect17_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect17_label2 = lv_label_create(rounded_rect17); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect17_label2, "17"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect17_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect17_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect18 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect18, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect18, 21, 65);
lv_obj_set_pos(rounded_rect18, 110, 175);
lv_obj_set_style_radius(rounded_rect18, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect18, lv_color_hex(0x20B2AA), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect18_label1 = lv_label_create(rounded_rect18); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect18_label1, "C3"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect18_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect18_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect18_label2 = lv_label_create(rounded_rect18); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect18_label2, "18"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect18_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect18_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect19 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect19, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect19, 21, 65);
lv_obj_set_pos(rounded_rect19, 131, 175);
lv_obj_set_style_radius(rounded_rect19, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect19, lv_color_hex(0x20B2AA), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect19_label1 = lv_label_create(rounded_rect19); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect19_label1, "C4"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect19_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect19_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect19_label2 = lv_label_create(rounded_rect19); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect19_label2, "19"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect19_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect19_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect20 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect20, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect20, 21, 65);
lv_obj_set_pos(rounded_rect20, 152, 175);
lv_obj_set_style_radius(rounded_rect20, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect20, lv_color_hex(0x20B2AA), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect20_label1 = lv_label_create(rounded_rect20); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect20_label1, "C5"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect20_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect20_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect20_label2 = lv_label_create(rounded_rect20); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect20_label2, "20"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect20_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect20_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect21 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect21, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect21, 21, 65);
lv_obj_set_pos(rounded_rect21, 173, 175);
lv_obj_set_style_radius(rounded_rect21, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect21, lv_color_hex(0x20B2AA), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect21_label1 = lv_label_create(rounded_rect21); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect21_label1, "C6"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect21_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect21_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect21_label2 = lv_label_create(rounded_rect21); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect21_label2, "21"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect21_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect21_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect22 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect22, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect22, 21, 65);
lv_obj_set_pos(rounded_rect22, 194, 175);
lv_obj_set_style_radius(rounded_rect22, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect22, lv_color_hex(0x20B2AA), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect22_label1 = lv_label_create(rounded_rect22); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect22_label1, "C7"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect22_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect22_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect22_label2 = lv_label_create(rounded_rect22); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect22_label2, "22"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect22_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect22_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect23 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect23, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect23, 21, 65);
lv_obj_set_pos(rounded_rect23, 215, 175);
lv_obj_set_style_radius(rounded_rect23, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect23, lv_color_hex(0x006400), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect23_label1 = lv_label_create(rounded_rect23); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect23_label1, "DI"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect23_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect23_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect23_label2 = lv_label_create(rounded_rect23); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect23_label2, "23"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect23_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect23_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect24 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect24, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect24, 21, 65);
lv_obj_set_pos(rounded_rect24, 236, 175);
lv_obj_set_style_radius(rounded_rect24, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect24, lv_color_hex(0x006400), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect24_label1 = lv_label_create(rounded_rect24); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect24_label1, "CL"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect24_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect24_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect24_label2 = lv_label_create(rounded_rect24); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect24_label2, "24"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect24_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect24_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect25 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect25, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect25, 21, 65);
lv_obj_set_pos(rounded_rect25, 257, 175);
lv_obj_set_style_radius(rounded_rect25, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect25, lv_color_hex(0xFF1493), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect25_label1 = lv_label_create(rounded_rect25); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect25_label1, "RX"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect25_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect25_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect25_label2 = lv_label_create(rounded_rect25); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect25_label2, "25"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect25_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect25_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect26 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect26, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect26, 21, 65);
lv_obj_set_pos(rounded_rect26, 278, 175);
lv_obj_set_style_radius(rounded_rect26, 5, LV_PART_MAIN);
lv_obj_set_style_bg_color(rounded_rect26, lv_color_hex(0xFF1493), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect26_label1 = lv_label_create(rounded_rect26); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect26_label1, "TX"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect26_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect26_label1, LV_ALIGN_TOP_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect26_label2 = lv_label_create(rounded_rect26); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect26_label2, "26"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect26_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect26_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
}
void power_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
ina266_flag = 1;
digitalWrite(1, LOW);
lv_obj_t *volt = lv_label_create(lv_scr_act());
lv_obj_set_style_text_color(volt, lv_color_hex(0xFF0000), 0);
lv_obj_set_style_text_font(volt, &lv_font_montserrat_28, 0);
lv_obj_set_pos(volt, 40, 10);
lv_obj_t *cur = lv_label_create(lv_scr_act());
lv_obj_set_style_text_color(cur, lv_color_hex(0x00FF7F), 0);
lv_obj_set_style_text_font(cur, &lv_font_montserrat_28, 0);
lv_obj_set_pos(cur, 40, 35);
lv_obj_t *watt = lv_label_create(lv_scr_act());
lv_obj_set_style_text_color(watt, lv_color_hex(0x00FFFF), 0);
lv_obj_set_style_text_font(watt, &lv_font_montserrat_28, 0);
lv_obj_set_pos(watt, 40, 60);
updatelabel_timer1 = lv_timer_create(update_label_timer1, 100, volt);
updatelabel_timer2 = lv_timer_create(update_label_timer2, 100, cur);
updatelabel_timer3 = lv_timer_create(update_label_timer3, 100, watt);
lv_obj_t *V = lv_label_create(lv_scr_act());
lv_obj_set_style_text_font(V, &lv_font_montserrat_28, 0);
lv_obj_set_pos(V, 126, 10);
lv_label_set_text(V, "#FF0000 V#"); // 设置文本内容
lv_label_set_recolor(V, true);
lv_obj_t *A = lv_label_create(lv_scr_act());
lv_obj_set_style_text_font(A, &lv_font_montserrat_28, 0);
lv_obj_set_pos(A, 126, 35);
lv_label_set_text(A, "#00FF7F A#"); // 设置文本内容
lv_label_set_recolor(A, true);
lv_obj_t *W = lv_label_create(lv_scr_act());
lv_obj_set_style_text_font(W, &lv_font_montserrat_28, 0);
lv_obj_set_pos(W, 121, 60);
lv_label_set_text(W, "#00FFFF W#"); // 设置文本内容
lv_label_set_recolor(W, true);
volt_chart = lv_chart_create(lv_scr_act());
lv_obj_set_style_bg_color(volt_chart, lv_color_hex(0x303030), LV_PART_MAIN);
lv_obj_set_style_line_color(volt_chart, lv_color_hex(0x696969), LV_PART_MAIN);
lv_obj_set_size(volt_chart, 260, 50);
lv_obj_set_pos(volt_chart, 30, 100);
lv_chart_set_point_count(volt_chart, 15);
lv_chart_set_axis_tick(volt_chart, LV_CHART_AXIS_PRIMARY_Y, 4, 2, 3, 2, false, 30);
lv_chart_set_range(volt_chart, LV_CHART_AXIS_PRIMARY_Y, 0, 12);
lv_obj_set_style_width(volt_chart, 0, LV_PART_INDICATOR);
lv_obj_set_style_height(volt_chart, 0, LV_PART_INDICATOR);
lv_chart_set_update_mode(volt_chart, LV_CHART_UPDATE_MODE_SHIFT);
lv_chart_series_t *ser1 = lv_chart_add_series(volt_chart, lv_color_hex(0xFF0000), LV_CHART_AXIS_PRIMARY_Y);
adddata_timer = lv_timer_create(add_data, 100, ser1);
lv_chart_refresh(volt_chart);
cur_chart = lv_chart_create(lv_scr_act());
lv_obj_set_style_bg_color(cur_chart, lv_color_hex(0x303030), LV_PART_MAIN);
lv_obj_set_style_line_color(cur_chart, lv_color_hex(0x696969), LV_PART_MAIN);
lv_obj_set_size(cur_chart, 260, 50);
lv_obj_set_pos(cur_chart, 30, 153);
lv_chart_set_point_count(cur_chart, 15);
lv_chart_set_axis_tick(cur_chart, LV_CHART_AXIS_PRIMARY_Y, 4, 2, 3, 2, false, 30);
lv_chart_set_range(cur_chart, LV_CHART_AXIS_PRIMARY_Y, 0, 100);
lv_obj_set_style_width(cur_chart, 0, LV_PART_INDICATOR);
lv_obj_set_style_height(cur_chart, 0, LV_PART_INDICATOR);
lv_chart_set_update_mode(cur_chart, LV_CHART_UPDATE_MODE_SHIFT);
lv_chart_series_t *ser2 = lv_chart_add_series(cur_chart, lv_color_hex(0x00FF7F), LV_CHART_AXIS_PRIMARY_Y);
adddata_timer2 = lv_timer_create(add_data2, 100, ser2);
lv_chart_refresh(cur_chart);
// 设置聚焦状态的边框
static lv_style_t focused_style;
lv_style_init(&focused_style);
lv_style_set_border_color(&focused_style, lv_color_hex(0xFFD700));
lv_style_set_border_width(&focused_style, 3);
static lv_style_t powerbtn_style;
lv_style_init(&powerbtn_style);
lv_style_set_bg_color(&powerbtn_style, lv_color_hex(0x000000));
lv_style_set_border_color(&powerbtn_style, lv_color_hex(0x808080));
lv_style_set_border_width(&powerbtn_style, 2);
lv_obj_t *poweron = lv_btn_create(lv_scr_act());
lv_obj_set_size(poweron, 41, 83);
lv_obj_set_pos(poweron, 249, 10);
lv_obj_add_style(poweron, &powerbtn_style, 0); // 将样式应用到矩形上
lv_obj_add_style(poweron, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(poweron, poweronbtn_event_cb, LV_EVENT_CLICKED, NULL);
poweron_label = lv_label_create(poweron);
lv_obj_set_style_text_color(poweron_label, lv_color_hex(0xFF0000), 0);
lv_obj_align(poweron_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(poweron_label, LV_SYMBOL_POWER);
lv_obj_set_style_text_font(poweron_label, &lv_font_montserrat_28, 0);
lv_obj_t *VUP = lv_btn_create(lv_scr_act());
lv_obj_set_size(VUP, 40, 40);
lv_obj_set_pos(VUP, 203, 10);
lv_obj_add_style(VUP, &powerbtn_style, 0); // 将样式应用到矩形上
lv_obj_add_style(VUP, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(VUP, VUPbtn_event_cb, LV_EVENT_CLICKED, NULL);
// lv_obj_add_style(poweron, &focused_style, LV_STATE_FOCUSED);
// lv_obj_add_event_cb(poweron, btn1_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *VUP_label = lv_label_create(VUP);
lv_obj_set_style_text_color(VUP_label, lv_color_hex(0x87CEEB), 0);
lv_obj_align(VUP_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(VUP_label, LV_SYMBOL_PLUS);
lv_obj_set_style_text_font(VUP_label, &lv_font_montserrat_24, 0);
lv_obj_t *VDOWN = lv_btn_create(lv_scr_act());
lv_obj_set_size(VDOWN, 40, 40);
lv_obj_set_pos(VDOWN, 203, 51);
lv_obj_add_style(VDOWN, &powerbtn_style, 0); // 将样式应用到矩形上
lv_obj_add_style(VDOWN, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(VDOWN, VDOWNbtn_event_cb, LV_EVENT_CLICKED, NULL);
// lv_obj_add_style(poweron, &focused_style, LV_STATE_FOCUSED);
// lv_obj_add_event_cb(poweron, btn1_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *VDOWN_label = lv_label_create(VDOWN);
lv_obj_set_style_text_color(VDOWN_label, lv_color_hex(0x87CEEB), 0);
lv_obj_align(VDOWN_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(VDOWN_label, LV_SYMBOL_MINUS);
lv_obj_set_style_text_font(VDOWN_label, &lv_font_montserrat_24, 0);
lv_obj_t *V11 = lv_btn_create(lv_scr_act());
lv_obj_set_size(V11, 42, 26);
lv_obj_set_pos(V11, 155, 10);
lv_obj_add_style(V11, &powerbtn_style, 0); // 将样式应用到矩形上
lv_obj_add_style(V11, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(V11, V11btn_event_cb, LV_EVENT_CLICKED, NULL);
// lv_obj_add_style(poweron, &focused_style, LV_STATE_FOCUSED);
// lv_obj_add_event_cb(poweron, btn1_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *V11_label = lv_label_create(V11);
lv_obj_set_style_text_color(V11_label, lv_color_hex(0xFFD700), 0);
lv_obj_align(V11_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(V11_label, "11V");
lv_obj_set_style_text_font(V11_label, &lv_font_montserrat_20, 0);
lv_obj_t *V5 = lv_btn_create(lv_scr_act());
lv_obj_set_size(V5, 42, 26);
lv_obj_set_pos(V5, 155, 37);
lv_obj_add_style(V5, &powerbtn_style, 0); // 将样式应用到矩形上
lv_obj_add_style(V5, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(V5, V5btn_event_cb, LV_EVENT_CLICKED, NULL);
// lv_obj_add_style(poweron, &focused_style, LV_STATE_FOCUSED);
// lv_obj_add_event_cb(poweron, btn1_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *V5_label = lv_label_create(V5);
lv_obj_set_style_text_color(V5_label, lv_color_hex(0xFFD700), 0);
lv_obj_align(V5_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(V5_label, "5V");
lv_obj_set_style_text_font(V5_label, &lv_font_montserrat_20, 0);
lv_obj_t *V3 = lv_btn_create(lv_scr_act());
lv_obj_set_size(V3, 42, 26);
lv_obj_set_pos(V3, 155, 64);
lv_obj_add_style(V3, &powerbtn_style, 0); // 将样式应用到矩形上
lv_obj_add_style(V3, &focused_style, LV_STATE_FOCUSED);
lv_obj_add_event_cb(V3, V3btn_event_cb, LV_EVENT_CLICKED, NULL);
// lv_obj_add_style(poweron, &focused_style, LV_STATE_FOCUSED);
// lv_obj_add_event_cb(poweron, btn1_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *V3_label = lv_label_create(V3);
lv_obj_set_style_text_color(V3_label, lv_color_hex(0xFFD700), 0);
lv_obj_align(V3_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(V3_label, "3V3");
lv_obj_set_style_text_font(V3_label, &lv_font_montserrat_18, 0);
group = lv_group_create();
lv_indev_set_group(indev_keypad, group);
lv_group_add_obj(group, poweron);
lv_group_add_obj(group, VUP);
lv_group_add_obj(group, VDOWN);
lv_group_add_obj(group, V11);
lv_group_add_obj(group, V5);
lv_group_add_obj(group, V3);
lv_obj_t *rounded_rect1 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect1, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect1, 50, 35);
lv_obj_set_pos(rounded_rect1, 26, 205);
lv_obj_set_style_radius(rounded_rect1, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect1, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect1_label1 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label1, "1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect1_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect1_label2 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label2, "GND"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect1_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect2 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect2, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect2, 50, 35);
lv_obj_set_pos(rounded_rect2, 76, 205);
lv_obj_set_style_radius(rounded_rect2, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect2, lv_color_hex(0x8B0000), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect2_label1 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label1, "2"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect2_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2_label2 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label2, "OUT"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect2_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *volt_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label1, "#FFD700 ROW1#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(volt_label1, 200, 210);
lv_label_set_recolor(volt_label1, true);
}
void pwm_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
lv_obj_t *pwm = lv_img_create(lv_scr_act());
lv_img_set_src(pwm, &pwmint_png); // Replace with your image variable or path
lv_obj_set_size(pwm, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_set_pos(pwm, 60, 110);
lv_obj_t *rounded_rect1 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect1, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect1, 50, 35);
lv_obj_set_pos(rounded_rect1, 26, 205);
lv_obj_set_style_radius(rounded_rect1, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect1, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect1_label1 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label1, "1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect1_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect1_label2 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label2, "GND"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect1_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect2 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect2, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect2, 50, 35);
lv_obj_set_pos(rounded_rect2, 76, 205);
lv_obj_set_style_radius(rounded_rect2, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect2, lv_color_hex(0x8B0000), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect2_label1 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label1, "6"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect2_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2_label2 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label2, "PWM"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect2_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *volt_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label1, "#FFD700 ROW1#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(volt_label1, 200, 210);
lv_label_set_recolor(volt_label1, true);
fre = lv_textarea_create(lv_scr_act()); /* 创建文本框 */
lv_textarea_set_placeholder_text(fre, "0-100K");
lv_obj_set_style_text_font(fre, &lv_font_montserrat_20, LV_PART_MAIN); /* 设置字体 */
lv_textarea_set_one_line(fre, true); /* 设置单行模式 */
lv_obj_set_size(fre, 100, 45);
lv_obj_set_pos(fre, 92, 10);
duty = lv_textarea_create(lv_scr_act()); /* 创建文本框 */
lv_textarea_set_placeholder_text(duty, "0-100");
lv_obj_set_style_text_font(duty, &lv_font_montserrat_20, LV_PART_MAIN); /* 设置字体 */
lv_textarea_set_one_line(duty, true); /* 设置单行模式 */
lv_obj_set_size(duty, 100, 45);
lv_obj_set_pos(duty, 92, 60);
lv_obj_t *fre_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(fre_label1, "#FFD700 FRE#"); // 设置文本内容
lv_obj_set_style_text_font(fre_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(fre_label1, 30, 20);
lv_label_set_recolor(fre_label1, true);
lv_obj_t *duty_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(duty_label1, "#87CEFA DUTY#"); // 设置文本内容
lv_obj_set_style_text_font(duty_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(duty_label1, 30, 70);
lv_label_set_recolor(duty_label1, true);
lv_obj_t *fre_label2 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(fre_label2, "#FFD700 Hz#"); // 设置文本内容
lv_obj_set_style_text_font(fre_label2, &lv_font_montserrat_20, 0);
lv_obj_set_pos(fre_label2, 200, 20);
lv_label_set_recolor(fre_label2, true);
lv_obj_t *duty_label2 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(duty_label2, "#87CEFA %#"); // 设置文本内容
lv_obj_set_style_text_font(duty_label2, &lv_font_montserrat_20, 0);
lv_obj_set_pos(duty_label2, 200, 65);
lv_label_set_recolor(duty_label2, true);
fre_keyboard = lv_keyboard_create(lv_scr_act());
duty_keyboard = lv_keyboard_create(lv_scr_act());
lv_keyboard_set_mode(fre_keyboard, LV_KEYBOARD_MODE_NUMBER);
lv_keyboard_set_mode(duty_keyboard, LV_KEYBOARD_MODE_NUMBER);
lv_keyboard_set_textarea(fre_keyboard, fre);
lv_keyboard_set_textarea(duty_keyboard, duty);
lv_obj_add_flag(fre_keyboard, LV_OBJ_FLAG_HIDDEN);
lv_obj_add_flag(duty_keyboard, LV_OBJ_FLAG_HIDDEN);
lv_obj_add_event_cb(fre, fretext_event_handler, LV_EVENT_CLICKED, NULL);
lv_obj_add_event_cb(duty, dutytext_event_handler, LV_EVENT_CLICKED, NULL);
lv_obj_add_event_cb(fre_keyboard, clear_keyboard_event_handler, LV_EVENT_VALUE_CHANGED, NULL); /* 设置键盘事件回调 */
lv_obj_add_event_cb(duty_keyboard, clear_keyboard_event_handler, LV_EVENT_VALUE_CHANGED, NULL); /* 设置键盘事件回调 */
static lv_style_t pwm_style;
lv_style_init(&pwm_style);
lv_style_set_bg_color(&pwm_style, lv_color_hex(0xFF0000));
lv_style_set_border_color(&pwm_style, lv_color_hex(0x000000));
lv_style_set_border_width(&pwm_style, 2);
pwm_btn = lv_btn_create(lv_scr_act());
lv_obj_add_style(pwm_btn, &pwm_style, 0); // 将样式应用到矩形上
lv_obj_set_size(pwm_btn, 69, 50);
lv_obj_set_pos(pwm_btn, 230, 30);
lv_obj_add_event_cb(pwm_btn, pwm_btn_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *pwm_btn_label = lv_label_create(pwm_btn);
lv_obj_set_style_text_color(pwm_btn_label, lv_color_hex(0xFFFFFF), 0);
lv_obj_align(pwm_btn_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(pwm_btn_label, "OPEN");
lv_obj_set_style_text_font(pwm_btn_label, &lv_font_montserrat_20, 0);
}
void uarthelper_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
lv_obj_t *rounded_rect1 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect1, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect1, 50, 35);
lv_obj_set_pos(rounded_rect1, 26, 205);
lv_obj_set_style_radius(rounded_rect1, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect1, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect1_label1 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label1, "1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect1_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect1_label2 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label2, "GND"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect1_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect2 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect2, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect2, 50, 35);
lv_obj_set_pos(rounded_rect2, 76, 205);
lv_obj_set_style_radius(rounded_rect2, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect2, lv_color_hex(0xFFA500), LV_PART_MAIN); // 背景色为橙色
lv_obj_t *rounded_rect2_label1 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label1, "12"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect2_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2_label2 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label2, "RX"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect2_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect3 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect3, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect3, 50, 35);
lv_obj_set_pos(rounded_rect3, 126, 205);
lv_obj_set_style_radius(rounded_rect3, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect3, lv_color_hex(0xFFA500), LV_PART_MAIN); // 背景色为橙色
lv_obj_t *rounded_rect3_label1 = lv_label_create(rounded_rect3); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect3_label1, "13"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect3_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect3_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect3_label2 = lv_label_create(rounded_rect3); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect3_label2, "TX"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect3_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect3_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *volt_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label1, "#FFD700 ROW1#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(volt_label1, 200, 210);
lv_label_set_recolor(volt_label1, true);
lv_obj_t *volt_label2 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label2, "#00FF7F UART#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label2, &lv_font_montserrat_28, 0);
lv_obj_set_pos(volt_label2, 35, 32);
lv_label_set_recolor(volt_label2, true);
lv_obj_t *volt_label3 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label3, "#00FFFF baudRate#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label3, &lv_font_montserrat_18, 0);
lv_obj_set_pos(volt_label3, 190, 5);
lv_label_set_recolor(volt_label3, true);
uart_extarea = lv_textarea_create(lv_scr_act());
lv_obj_set_size(uart_extarea, 269, 126);
lv_obj_set_pos(uart_extarea, 26, 75);
lv_textarea_set_placeholder_text(uart_extarea, "Use '\\n' as the end of the usart information");
uart_list = lv_dropdown_create(lv_scr_act());
lv_obj_set_size(uart_list, 105, 40);
lv_obj_set_pos(uart_list, 190, 30);
lv_dropdown_set_options(uart_list, "");
lv_dropdown_add_option(uart_list, "1200", 0);
lv_dropdown_add_option(uart_list, "2400", 1);
lv_dropdown_add_option(uart_list, "4800", 2);
lv_dropdown_add_option(uart_list, "9600", 3);
lv_dropdown_add_option(uart_list, "19200", 4);
lv_dropdown_add_option(uart_list, "43000", 5);
lv_dropdown_add_option(uart_list, "76800", 6);
lv_dropdown_add_option(uart_list, "115200", 7);
lv_dropdown_add_option(uart_list, "128000", 8);
lv_dropdown_add_option(uart_list, "230400", 9);
lv_dropdown_add_option(uart_list, "256000", 10);
lv_dropdown_add_option(uart_list, "460800", 11);
lv_dropdown_add_option(uart_list, "921600", 12);
lv_dropdown_set_selected(uart_list, 7);
static lv_style_t uart_style;
lv_style_init(&uart_style);
lv_style_set_bg_color(&uart_style, lv_color_hex(0xFF0000));
lv_style_set_border_color(&uart_style, lv_color_hex(0x000000));
lv_style_set_border_width(&uart_style, 2);
uart_btn = lv_btn_create(lv_scr_act());
lv_obj_add_style(uart_btn, &uart_style, 0); // 将样式应用到矩形上
lv_obj_set_size(uart_btn, 65, 52);
lv_obj_set_pos(uart_btn, 120, 20);
lv_obj_add_event_cb(uart_btn, uart_btn_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *uart_btn_label = lv_label_create(uart_btn);
lv_obj_set_style_text_color(uart_btn_label, lv_color_hex(0xFFFFFF), 0);
lv_obj_align(uart_btn_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(uart_btn_label, "OPEN");
lv_obj_set_style_text_font(uart_btn_label, &lv_font_montserrat_20, 0);
}
void i2c_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
lv_obj_t *rounded_rect1 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect1, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect1, 50, 35);
lv_obj_set_pos(rounded_rect1, 26, 205);
lv_obj_set_style_radius(rounded_rect1, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect1, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect1_label1 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label1, "1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect1_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect1_label2 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label2, "GND"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect1_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect2 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect2, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect2, 50, 35);
lv_obj_set_pos(rounded_rect2, 76, 205);
lv_obj_set_style_radius(rounded_rect2, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect2, lv_color_hex(0x1E90FF), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect2_label1 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label1, "7"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect2_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2_label2 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label2, "SCL"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect2_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect3 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect3, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect3, 50, 35);
lv_obj_set_pos(rounded_rect3, 126, 205);
lv_obj_set_style_radius(rounded_rect3, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect3, lv_color_hex(0x1E90FF), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect3_label1 = lv_label_create(rounded_rect3); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect3_label1, "8"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect3_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect3_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect3_label2 = lv_label_create(rounded_rect3); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect3_label2, "SDA"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect3_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect3_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *volt_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label1, "#FFD700 ROW1#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(volt_label1, 200, 210);
lv_label_set_recolor(volt_label1, true);
lv_obj_t *volt_label2 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label2, "#00FFFF I2C Device#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label2, &lv_font_montserrat_28, 0);
lv_obj_set_pos(volt_label2, 35, 26);
lv_label_set_recolor(volt_label2, true);
i2c_extarea = lv_textarea_create(lv_scr_act());
lv_obj_set_size(i2c_extarea, 269, 120);
lv_obj_set_pos(i2c_extarea, 26, 75);
static lv_style_t i2con_style;
lv_style_init(&i2con_style);
lv_style_set_bg_color(&i2con_style, lv_color_hex(0xFF0000));
lv_style_set_border_color(&i2con_style, lv_color_hex(0x000000));
lv_style_set_border_width(&i2con_style, 2);
i2con = lv_btn_create(lv_scr_act());
lv_obj_add_style(i2con, &i2con_style, 0); // 将样式应用到矩形上
lv_obj_set_size(i2con, 90, 45);
lv_obj_set_pos(i2con, 200, 20);
lv_obj_add_event_cb(i2con, i2conbtn_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *i2con_label = lv_label_create(i2con);
lv_obj_set_style_text_color(i2con_label, lv_color_hex(0xFFFFFF), 0);
lv_obj_align(i2con_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(i2con_label, "SCAN");
lv_obj_set_style_text_font(i2con_label, &lv_font_montserrat_24, 0);
}
void voltmeter_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
ina266_flag = 1;
digitalWrite(1, LOW);
lv_obj_t *label1 = lv_label_create(lv_scr_act());
lv_obj_set_style_text_font(label1, &lv_font_montserrat_28, 0);
lv_obj_set_pos(label1, 115, 20);
updatelabel_timer1 = lv_timer_create(update_label_timer1, 100, label1);
lv_obj_t *label2 = lv_label_create(lv_scr_act());
lv_obj_set_style_text_font(label2, &lv_font_montserrat_28, 0);
lv_obj_set_pos(label2, 220, 20);
lv_label_set_text(label2, "#FF0000 V#"); // 设置文本内容
lv_label_set_recolor(label2, true);
volt_chart = lv_chart_create(lv_scr_act());
lv_obj_set_style_bg_color(volt_chart, lv_color_hex(0x303030), LV_PART_MAIN);
lv_obj_set_style_line_color(volt_chart, lv_color_hex(0x696969), LV_PART_MAIN);
lv_obj_set_size(volt_chart, 260, 140);
lv_obj_set_pos(volt_chart, 55, 60);
lv_chart_set_point_count(volt_chart, 15);
lv_chart_set_axis_tick(volt_chart, LV_CHART_AXIS_PRIMARY_Y, 4, 2, 6, 2, true, 30);
lv_chart_set_range(volt_chart, LV_CHART_AXIS_PRIMARY_Y, 0, 20);
lv_obj_set_style_width(volt_chart, 0, LV_PART_INDICATOR);
lv_obj_set_style_height(volt_chart, 0, LV_PART_INDICATOR);
lv_chart_set_update_mode(volt_chart, LV_CHART_UPDATE_MODE_SHIFT);
lv_chart_series_t *ser1 = lv_chart_add_series(volt_chart, lv_palette_main(LV_PALETTE_RED), LV_CHART_AXIS_PRIMARY_Y);
adddata_timer = lv_timer_create(add_data, 100, ser1);
lv_chart_refresh(volt_chart);
lv_obj_t *rounded_rect1 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect1, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect1, 50, 35);
lv_obj_set_pos(rounded_rect1, 26, 205);
lv_obj_set_style_radius(rounded_rect1, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect1, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect1_label1 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label1, "1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect1_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect1_label2 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label2, "GND"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect1_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect2 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect2, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect2, 50, 35);
lv_obj_set_pos(rounded_rect2, 76, 205);
lv_obj_set_style_radius(rounded_rect2, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect2, lv_color_hex(0x8B0000), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect2_label1 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label1, "2"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect2_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2_label2 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label2, "VIN"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect2_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *volt_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label1, "#FFD700 ROW1#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(volt_label1, 200, 210);
lv_label_set_recolor(volt_label1, true);
}
void DSO_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
DSO_flag = 1;
DSO_chart = lv_chart_create(lv_scr_act());
lv_obj_set_size(DSO_chart, 269, 165);
lv_obj_set_pos(DSO_chart, 26, 30);
lv_obj_set_style_bg_color(DSO_chart, lv_color_hex(0x303030), LV_PART_MAIN);
lv_obj_set_style_line_color(DSO_chart, lv_color_hex(0x696969), LV_PART_MAIN);
lv_chart_set_point_count(DSO_chart, 64);
lv_chart_set_div_line_count(DSO_chart, 7, 11);
lv_chart_set_axis_tick(DSO_chart, LV_CHART_AXIS_PRIMARY_Y, 4, 2, 7, 2, false, 30);
lv_chart_set_range(DSO_chart, LV_CHART_AXIS_PRIMARY_Y, 0, 4095);
lv_obj_set_style_width(DSO_chart, 0, LV_PART_INDICATOR);
lv_obj_set_style_height(DSO_chart, 0, LV_PART_INDICATOR);
lv_chart_set_update_mode(DSO_chart, LV_CHART_UPDATE_MODE_SHIFT);
DSO_ser = lv_chart_add_series(DSO_chart, lv_color_hex(0xFFFF00), LV_CHART_AXIS_PRIMARY_Y);
// DSO_adddata_timer = lv_timer_create(DSO_add_data, 10, DSO_ser);
lv_chart_refresh(DSO_chart);
lv_obj_t *max_label = lv_label_create(lv_scr_act());
lv_obj_set_style_text_color(max_label, lv_color_hex(0xFF0000), 0);
lv_obj_set_style_text_font(max_label, &lv_font_montserrat_20, 0);
lv_obj_set_pos(max_label, 30, 10);
lv_label_set_text(max_label, "max"); // 设置文本内容
lv_obj_t *maxValue_label = lv_label_create(lv_scr_act());
lv_obj_set_style_text_color(maxValue_label, lv_color_hex(0xFF0000), 0);
lv_obj_set_style_text_font(maxValue_label, &lv_font_montserrat_20, 0);
lv_obj_set_pos(maxValue_label, 75, 10);
lv_obj_t *min_label = lv_label_create(lv_scr_act());
lv_obj_set_style_text_color(min_label, lv_color_hex(0x00FF7F), 0);
lv_obj_set_style_text_font(min_label, &lv_font_montserrat_20, 0);
lv_obj_set_pos(min_label, 118, 10);
lv_label_set_text(min_label, "min"); // 设置文本内容
lv_obj_t *minValue_label = lv_label_create(lv_scr_act());
lv_obj_set_style_text_color(minValue_label, lv_color_hex(0x00FF7F), 0);
lv_obj_set_style_text_font(minValue_label, &lv_font_montserrat_20, 0);
lv_obj_set_pos(minValue_label, 160, 10);
lv_obj_t *vpp_label = lv_label_create(lv_scr_act());
lv_obj_set_style_text_color(vpp_label, lv_color_hex(0x00FFFF), 0);
lv_obj_set_style_text_font(vpp_label, &lv_font_montserrat_20, 0);
lv_obj_set_pos(vpp_label, 205, 10);
lv_label_set_text(vpp_label, "vpp"); // 设置文本内容
lv_obj_t *peakToPeakValue_label = lv_label_create(lv_scr_act());
lv_obj_set_style_text_color(peakToPeakValue_label, lv_color_hex(0x00FFFF), 0);
lv_obj_set_style_text_font(peakToPeakValue_label, &lv_font_montserrat_20, 0);
lv_obj_set_pos(peakToPeakValue_label, 245, 10);
DSO_update_timer1 = lv_timer_create(DSO_update_maxValue_timer, 50, maxValue_label);
DSO_update_timer2 = lv_timer_create(DSO_update_minValue_timer, 50, minValue_label);
DSO_update_timer3 = lv_timer_create(DSO_update_peakToPeakValue_timer, 50, peakToPeakValue_label);
lv_obj_t *rounded_rect1 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect1, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect1, 50, 35);
lv_obj_set_pos(rounded_rect1, 26, 205);
lv_obj_set_style_radius(rounded_rect1, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect1, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect1_label1 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label1, "1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect1_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect1_label2 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label2, "GND"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect1_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect2 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect2, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect2, 50, 35);
lv_obj_set_pos(rounded_rect2, 76, 205);
lv_obj_set_style_radius(rounded_rect2, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect2, lv_color_hex(0xFF8C00), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect2_label1 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label1, "5"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect2_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2_label2 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label2, "IN"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect2_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *volt_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label1, "#FFD700 ROW1#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(volt_label1, 135, 210);
lv_label_set_recolor(volt_label1, true);
lv_obj_t *volt_label2 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label2, "#FFD700 0.55v/Div#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label2, &lv_font_montserrat_18, 0);
lv_obj_set_pos(volt_label2, 210, 211);
lv_label_set_recolor(volt_label2, true);
}
void wirelessuart_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
lv_obj_t *rounded_rect1 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect1, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect1, 50, 35);
lv_obj_set_pos(rounded_rect1, 26, 205);
lv_obj_set_style_radius(rounded_rect1, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect1, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect1_label1 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label1, "1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect1_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect1_label2 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label2, "GND"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect1_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect2 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect2, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect2, 50, 35);
lv_obj_set_pos(rounded_rect2, 76, 205);
lv_obj_set_style_radius(rounded_rect2, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect2, lv_color_hex(0xFFA500), LV_PART_MAIN); // 背景色为橙色
lv_obj_t *rounded_rect2_label1 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label1, "12"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect2_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2_label2 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label2, "RX"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect2_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect3 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect3, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect3, 50, 35);
lv_obj_set_pos(rounded_rect3, 126, 205);
lv_obj_set_style_radius(rounded_rect3, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect3, lv_color_hex(0xFFA500), LV_PART_MAIN); // 背景色为橙色
lv_obj_t *rounded_rect3_label1 = lv_label_create(rounded_rect3); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect3_label1, "13"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect3_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect3_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect3_label2 = lv_label_create(rounded_rect3); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect3_label2, "TX"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect3_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect3_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *volt_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label1, "#FFD700 ROW1#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(volt_label1, 200, 210);
lv_label_set_recolor(volt_label1, true);
lv_obj_t *volt_label2 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_obj_set_style_text_color(volt_label2, lv_color_hex(0x1E90FF), 0);
lv_label_set_text(volt_label2, LV_SYMBOL_BLUETOOTH "BLE"); // 设置文本内容
lv_obj_set_style_text_font(volt_label2, &lv_font_montserrat_28, 0);
lv_obj_set_pos(volt_label2, 26, 32);
lv_label_set_recolor(volt_label2, true);
lv_obj_t *volt_label3 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(volt_label3, "#00FFFF baudRate#"); // 设置文本内容
lv_obj_set_style_text_font(volt_label3, &lv_font_montserrat_18, 0);
lv_obj_set_pos(volt_label3, 190, 5);
lv_label_set_recolor(volt_label3, true);
wireless_uart_list = lv_dropdown_create(lv_scr_act());
lv_obj_set_size(wireless_uart_list, 105, 40);
lv_obj_set_pos(wireless_uart_list, 190, 30);
lv_dropdown_set_options(wireless_uart_list, "");
lv_dropdown_add_option(wireless_uart_list, "1200", 0);
lv_dropdown_add_option(wireless_uart_list, "2400", 1);
lv_dropdown_add_option(wireless_uart_list, "4800", 2);
lv_dropdown_add_option(wireless_uart_list, "9600", 3);
lv_dropdown_add_option(wireless_uart_list, "19200", 4);
lv_dropdown_add_option(wireless_uart_list, "43000", 5);
lv_dropdown_add_option(wireless_uart_list, "76800", 6);
lv_dropdown_add_option(wireless_uart_list, "115200", 7);
lv_dropdown_add_option(wireless_uart_list, "128000", 8);
lv_dropdown_add_option(wireless_uart_list, "230400", 9);
lv_dropdown_add_option(wireless_uart_list, "256000", 10);
lv_dropdown_add_option(wireless_uart_list, "460800", 11);
lv_dropdown_add_option(wireless_uart_list, "921600", 12);
lv_dropdown_set_selected(wireless_uart_list, 7);
wireless_uart_extarea = lv_textarea_create(lv_scr_act());
lv_obj_set_size(wireless_uart_extarea, 269, 120);
lv_obj_set_pos(wireless_uart_extarea, 26, 75);
lv_textarea_set_placeholder_text(wireless_uart_extarea, "Use '\\n' as the end of the usart information");
static lv_style_t wireless_uart_style;
lv_style_init(&wireless_uart_style);
lv_style_set_bg_color(&wireless_uart_style, lv_color_hex(0xFF0000));
lv_style_set_border_color(&wireless_uart_style, lv_color_hex(0x000000));
lv_style_set_border_width(&wireless_uart_style, 2);
wireless_uart_btn = lv_btn_create(lv_scr_act());
lv_obj_add_style(wireless_uart_btn, &wireless_uart_style, 0); // 将样式应用到矩形上
lv_obj_set_size(wireless_uart_btn, 65, 52);
lv_obj_set_pos(wireless_uart_btn, 120, 20);
lv_obj_add_event_cb(wireless_uart_btn, wireless_uart_btn_event_cb, LV_EVENT_CLICKED, NULL);
lv_obj_t *wireless_uart_btn_label = lv_label_create(wireless_uart_btn);
lv_obj_set_style_text_color(wireless_uart_btn_label, lv_color_hex(0xFFFFFF), 0);
lv_obj_align(wireless_uart_btn_label, LV_ALIGN_CENTER, 0, 0);
lv_label_set_text(wireless_uart_btn_label, "OPEN");
lv_obj_set_style_text_font(wireless_uart_btn_label, &lv_font_montserrat_20, 0);
}
void FREcount_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
FREcount_flag = 1;
lv_obj_t *rounded_rect1 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect1, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect1, 50, 35);
lv_obj_set_pos(rounded_rect1, 26, 205);
lv_obj_set_style_radius(rounded_rect1, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect1, lv_color_hex(0x696969), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect1_label1 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label1, "1"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect1_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect1_label2 = lv_label_create(rounded_rect1); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect1_label2, "GND"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect1_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect1_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *rounded_rect2 = lv_obj_create(lv_scr_act());
lv_obj_remove_style(rounded_rect2, 0, LV_PART_SCROLLBAR);
lv_obj_set_size(rounded_rect2, 50, 35);
lv_obj_set_pos(rounded_rect2, 76, 205);
lv_obj_set_style_radius(rounded_rect2, 5, LV_PART_MAIN); // 圆角半径20
lv_obj_set_style_bg_color(rounded_rect2, lv_color_hex(0x8B0000), LV_PART_MAIN); // 背景色为绿色
lv_obj_t *rounded_rect2_label1 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label1, "6"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label1, &lv_font_montserrat_12, 0);
lv_obj_align(rounded_rect2_label1, LV_ALIGN_TOP_MID, 0, 2); // 将文本居中对齐到圆角矩形
lv_obj_t *rounded_rect2_label2 = lv_label_create(rounded_rect2); // 将文本标签添加到圆角矩形上
lv_label_set_text(rounded_rect2_label2, "IN"); // 设置文本内容
lv_obj_set_style_text_font(rounded_rect2_label2, &lv_font_montserrat_16, 0);
lv_obj_align(rounded_rect2_label2, LV_ALIGN_BOTTOM_MID, 0, 0); // 将文本居中对齐到圆角矩形
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
lv_obj_t *FREcount_label1 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(FREcount_label1, "#FFD700 ROW1#"); // 设置文本内容
lv_obj_set_style_text_font(FREcount_label1, &lv_font_montserrat_20, 0);
lv_obj_set_pos(FREcount_label1, 200, 210);
lv_label_set_recolor(FREcount_label1, true);
lv_obj_t *FREcount_label2 = lv_label_create(lv_scr_act()); // 将文本标签添加到圆角矩形上
lv_label_set_text(FREcount_label2, "#00FFFF Frequency Counter#"); // 设置文本内容
lv_obj_set_style_text_font(FREcount_label2, &lv_font_montserrat_24, 0);
lv_obj_set_pos(FREcount_label2, 35, 26);
lv_label_set_recolor(FREcount_label2, true);
FRE_label = lv_label_create(lv_scr_act());
lv_obj_set_style_text_font(FRE_label, &lv_font_montserrat_42, 0);
lv_obj_set_pos(FRE_label, 50, 100);
lv_label_set_text(FRE_label, "0");
FRE_label_update_timer = lv_timer_create(FRE_label_update, 1000, NULL);
lv_obj_t *Hz_label = lv_label_create(lv_scr_act());
lv_obj_set_style_text_font(Hz_label, &lv_font_montserrat_28, 0);
lv_obj_set_pos(Hz_label, 256, 110);
lv_label_set_text(Hz_label, "#FF0000 Hz#"); // 设置文本内容
lv_label_set_recolor(Hz_label, true);
}
void readme_init(void)
{
lv_obj_clean(lv_scr_act());
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x000000), 0);
lv_obj_add_event_cb(lv_scr_act(), longpress_event_handler_back, LV_EVENT_LONG_PRESSED, NULL);
lv_obj_t *img1 = lv_img_create(lv_scr_act());
lv_img_set_src(img1, &kobe_png); // Replace with your image variable or path
lv_obj_set_size(img1, LV_SIZE_CONTENT, LV_SIZE_CONTENT); // Set image size
lv_obj_align(img1, LV_ALIGN_OUT_RIGHT_MID, 0, 0); // Center the image within the button
lv_obj_add_event_cb(lv_scr_act(), event_handler_back, LV_EVENT_ALL, NULL);
}
void ui_init(void)
{
// 设置显示主题
lv_theme_default_init(NULL, lv_color_hex(0x000000), lv_color_hex(0xFF0000), LV_THEME_DEFAULT_DARK, NULL);
create_boot_animation();
}
智能硬件社区聚焦AI智能硬件技术生态，汇聚嵌入式AI、物联网硬件开发者，打造交流分享平台，同步全国赛事资讯、开展 OPC 核心人才招募，助力技术落地与开发者成长。
更多推荐
2
0- 0
已为社区贡献6条内容
所有评论(0)
